Relay for BMW 5 Series E28 M535i (1987)

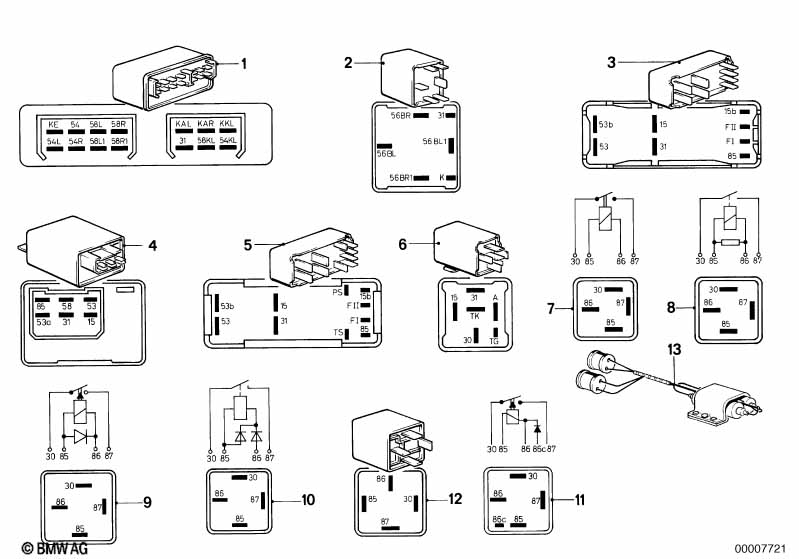

This Relay technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 M535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bulb testing device | 1 | 61311368326 | ENDED | Shop at ECS Tuning | |||||
| 02 | Bulb testing device | 1 | 61311367889 | $30.84 | ENDED | Shop at ECS Tuning | ||||
| 02 | Bulb testing device | 1 | 61311368325 | $21.04 | Shop at ECS Tuning | |||||
| 03 | Wiper-wash-interval control unit | 1 | 61311368198 | Shop at ECS Tuning | ||||||
| For vehicles with Headlight cleaning system |
=Yes |
|||||||||
| 04 | Wiper-wash-interval control unit | 1 | 61311367391 | $207.32 | ENDED | Shop at ECS Tuning | ||||
| 05 | Control unit intensiv cleaner | 1 | 61311369829 | $235.86 | ENDED | Shop at ECS Tuning | ||||
| 06 | Control unit for interior light | 1 | 61311373974 | $86.39 | ENDED | Shop at ECS Tuning | ||||
| 08 | Relay | GELB | X | 61311373585 | $23.75 | ENDED | Shop at ECS Tuning | |||
| 08 | Mini-relay | X | 61311373588 | $11.38 | Shop at ECS Tuning | |||||
| For vehicles with National version Great Britain ONLY APPLIES TO RESISTOR "CONTINIOUS DIM LIGHT" |
L812A=Yes |
|||||||||
| 08 | Relay, make contact, white green | 3 | 10/1986 | 61368373700 | $13.96 | Shop at ECS Tuning | ||||
| 10 | Diode relay | 3 | 61311380014 | $17.00 | ENDED | Shop at ECS Tuning | ||||
| 11 | Diode relay | 1 | 12631276189 | $29.13 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Self-levelling suspension |
=Yes |
|||||||||
| 12 | Relay | 1 | 61311154784 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Great Britain |
L812A=Yes |
|||||||||
| 13 | Resistor "continious dim light" | 1 | 10/1986 | 61131381922 | Shop at ECS Tuning | |||||
