Fuse box for BMW 3 Series E30 M3 (1990)

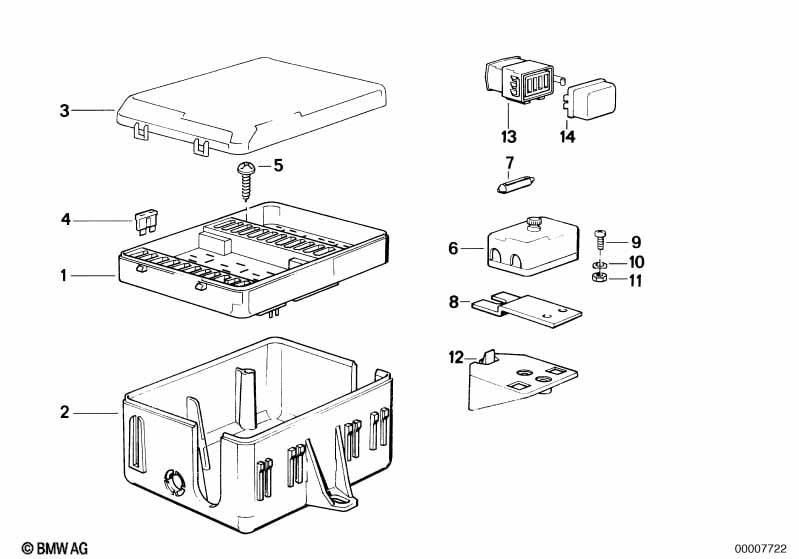

This Fuse box technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuse box | 1 | 06/1989 | 61131370763 | $163.42 | Shop at ECS Tuning | ||||
| 02 | Wiring box | 1 | 09/1986 | 61131380973 | $25.86 | ENDED | Shop at ECS Tuning | |||
| 03 | Cover | 1 | 61131368802 | $29.44 | Shop at ECS Tuning | |||||
| 04 | Fuse brown | 7,5A | X | 61131372524 | $0.58 | Shop at ECS Tuning | ||||
| 04 | Fuse blue | 15A | X | 61131372526 | Shop at ECS Tuning | |||||
| 04 | Fuse Maxi, yellow | 20A | X | 61131372527 | Shop at ECS Tuning | |||||
| 04 | Fuse green | 30A | X | 61131372529 | Shop at ECS Tuning | |||||
| 04 | Fuse | 2A | X | 61131386849 | $0.75 | Shop at ECS Tuning | ||||
| 05 | Fillister head self-tapping screw | ST3,9X19 | 2 | 07119906735 | ENDED | Shop at ECS Tuning | ||||
| 13 | Fuse carrier | 1 | 61131382196 | $14.38 | Shop at ECS Tuning | |||||
| 14 | Cover for fuse holder | 1 | 61131382197 | $7.10 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
