Relay for BMW 3 Series E21 320i (1977)

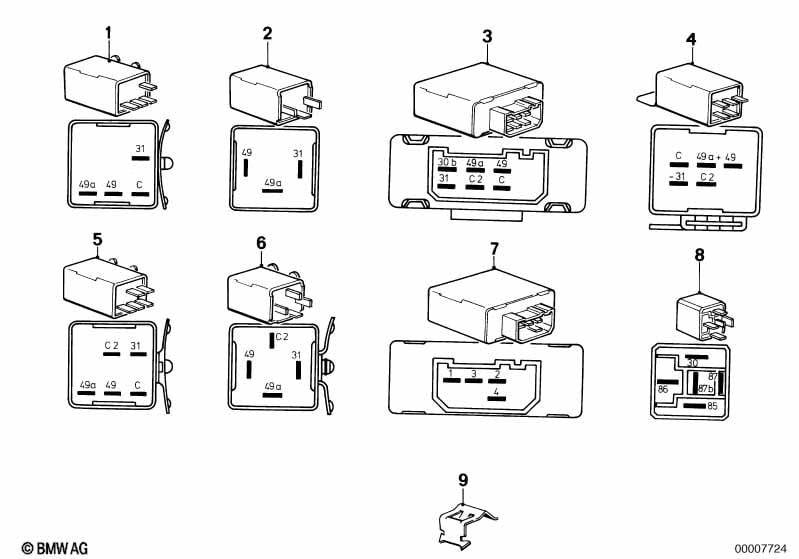

This Relay technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hazard warning relay | 1 | 08/1979 | 61311365609 | Shop at ECS Tuning | |||||
| For vehicles with Trailer coupling |
=Yes |
|||||||||
| 03 | Hazard warning relay | BOSCH | 1 | 08/1977 | 61311356383 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sweden version |
=Yes |
|||||||||
| 07 | Relay for speed switch | 1 | 61311361488 | ENDED | Shop at ECS Tuning | |||||
| 08 | Relay, two-pole make contact, black | 1 | 61368353447 | $13.96 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320i Relay?
- This technical diagram illustrates the Relay within the Vehicle electrical system group for the 3 Series E21 320i produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Hazard warning relay (Part #61311365609).
- Which models use the hardware listed in this Relay?
- The hardware and components featured in the Relay are specific to the 3 Series E21 320i produced during 1977. These technical specifications ensure that parts like the Hazard warning relay (61311365609) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Relay assembly?
- Each item in the Relay corresponds to the numbered list below the illustration. For the 3 Series E21 320i, you can identify the Hazard warning relay by locating its position on the schematic, which then links to the official BMW part number 61311365609 for the Vehicle electrical system section.
