Relay for BMW 7 Series E23 733i (1981)

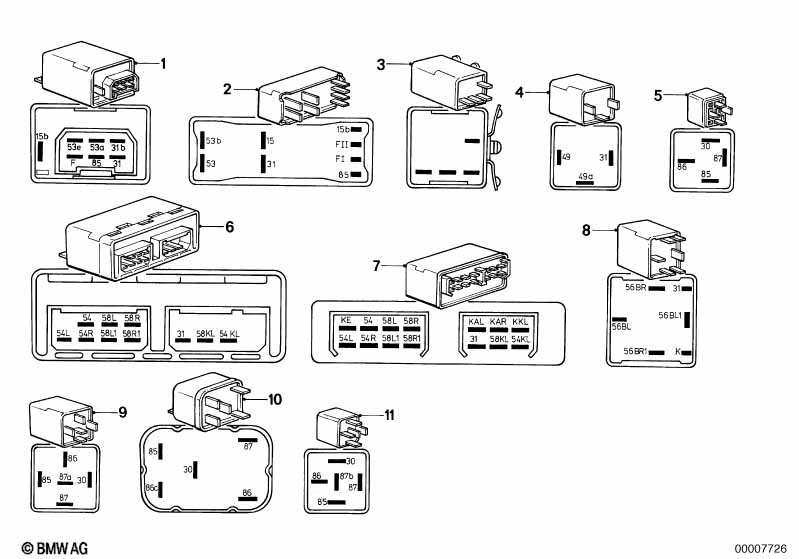

This Relay technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiper-wash-interval control unit | 1 | 09/1982 | 61311357904 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hazard warning relay | 1 | 09/1981 | 61311371909 | Shop at ECS Tuning | |||||
| 04 | Hazard warning relay | 1 | 09/1981 | 61311371909 | Shop at ECS Tuning | |||||
| 05 | Relay | GELB | X | 61311373585 | $23.75 | ENDED | Shop at ECS Tuning | |||
| 05 | Mini-relay | X | 61311373588 | $11.38 | Shop at ECS Tuning | |||||
| 05 | Relay, make contact, white green | X | 61368373700 | $13.96 | Shop at ECS Tuning | |||||
| 07 | Bulb testing device | 1 | 09/1981 | 61311368326 | ENDED | Shop at ECS Tuning | ||||
| 07 | Bulb testing device | 1 | 09/1981 | 61311368326 | ENDED | Shop at ECS Tuning | ||||
| 08 | Bulb testing device | 1 | 09/1981 | 61311367889 | $30.84 | ENDED | Shop at ECS Tuning | |||
| 08 | Bulb testing device | 1 | 09/1981 | 61311367889 | $30.84 | ENDED | Shop at ECS Tuning | |||
| 08 | Bulb testing device | 1 | 09/1981 | 61311368325 | $21.04 | Shop at ECS Tuning | ||||
| 08 | Bulb testing device | 1 | 09/1981 | 61311368325 | $21.04 | Shop at ECS Tuning | ||||
| For vehicles with Rear fog light |
=Yes |
|||||||||
| 09 | Relay, change-over contact,signal violet | 1 | 61361388911 | $13.96 | Shop at ECS Tuning | |||||
| 10 | Cold start relay | 1 | 61311354858 | $99.58 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
