Relay for BMW 3 Series E30 320i (1992)

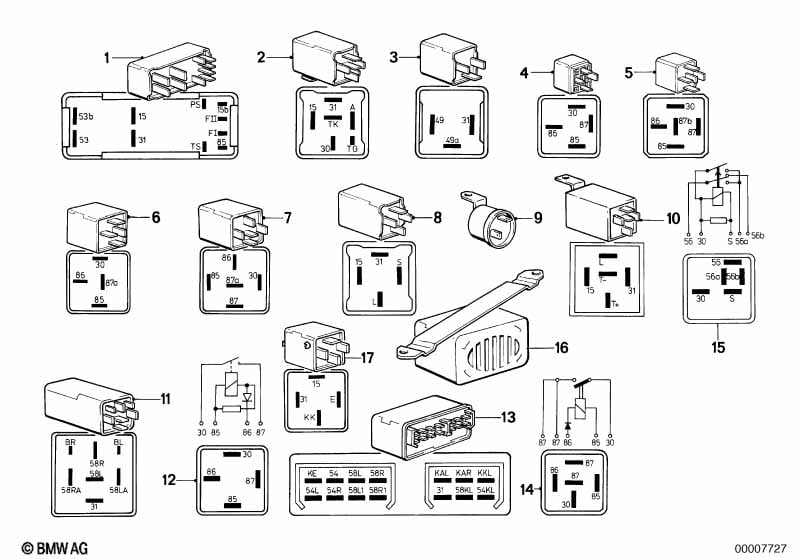

This Relay technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Wiper-wash-interval control unit | 1 | 61311368198 | Shop at ECS Tuning | ||||||
| 02 | Control unit for interior light | 1 | 61311373974 | $86.39 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hazard warning relay | 1 | 61311371909 | Shop at ECS Tuning | ||||||
| 04 | Relay | GELB | X | 61311373585 | $23.75 | ENDED | Shop at ECS Tuning | |||
| 04 | Mini-relay | X | 61311373588 | $11.38 | Shop at ECS Tuning | |||||
| 04 | Relay, make contact, white green | X | 61368373700 | $13.96 | Shop at ECS Tuning | |||||
| 05 | Relay, two-pole make contact, black | 2 | 61368353447 | $13.96 | Shop at ECS Tuning | |||||
| 06 | Relay | 1 | 61311373916 | $23.75 | ENDED | Shop at ECS Tuning | ||||
| 07 | Relay, change-over contact,signal violet | 1 | 61361388911 | $13.96 | Shop at ECS Tuning | |||||
| 10 | Relay for thermo switch | 1 | 61311381681 | $241.06 | Shop at ECS Tuning | |||||
| 12 | Relay | 1 | 61311380013 | $95.53 | ENDED | Shop at ECS Tuning | ||||
| 13 | Bulb testing device | 1 | 61311368326 | ENDED | Shop at ECS Tuning | |||||
