Relay for BMW 3 Series E30 320i (1992)

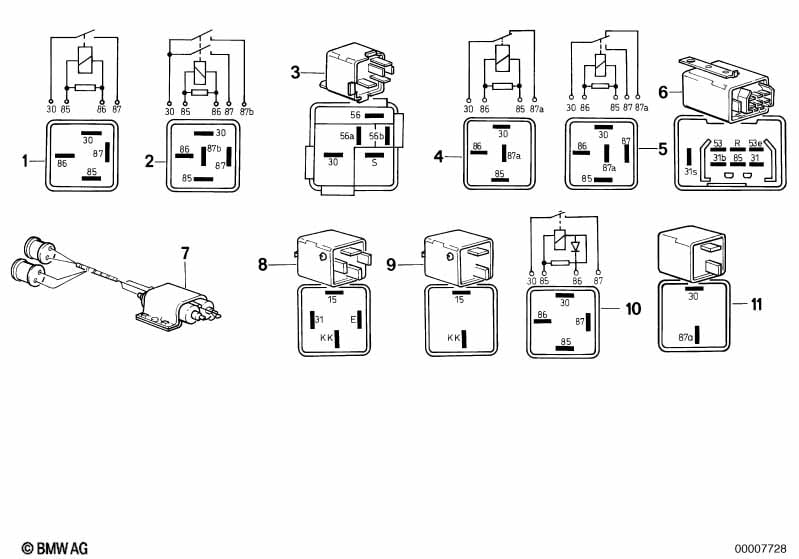

This Relay technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Relay | GELB | X | 61311373585 | $23.75 | ENDED | Shop at ECS Tuning | |||
| 01 | Mini-relay | X | 61311373588 | $11.38 | Shop at ECS Tuning | |||||
| 01 | Relay, make contact, white green | X | 61368373700 | $13.96 | Shop at ECS Tuning | |||||
| 02 | Relay, two-pole make contact, black | 1 | 61361388364 | $13.96 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO LOW BEAM FOGLAMPS |
||||||||||
| 02 | Relay, two-pole make contact, black | 1 | 61368353447 | $13.96 | Shop at ECS Tuning | |||||
| 04 | Relay | 1 | 61311373916 | $23.75 | ENDED | Shop at ECS Tuning | ||||
| 04 | Relay, change-over contact,signal violet | 1 | 61361388911 | $13.96 | Shop at ECS Tuning | |||||
| 05 | Relay w.notch lock | 1 | 01/1993 | 61311373604 | $11.20 | ENDED | Shop at ECS Tuning | |||
| 05 | Relay, change-over contact,signal violet | 1 | 61361388911 | $13.96 | Shop at ECS Tuning | |||||
| 05 | Relay w.notch lock | 1 | 61361388913 | $12.13 | ENDED | Shop at ECS Tuning | ||||
| 05 | Relay, change-over contact,signal violet | 1 | 10/1986 | 61361388911 | $13.96 | Shop at ECS Tuning | ||||
| 05 | Relay w.notch lock | 1 | 10/1986 | 61361388913 | $12.13 | ENDED | Shop at ECS Tuning | |||
| 07 | Resistor "continious dim light" | 1 | 61131381922 | Shop at ECS Tuning | ||||||
