Various relays for BMW 3 Series E30 325i (1991)

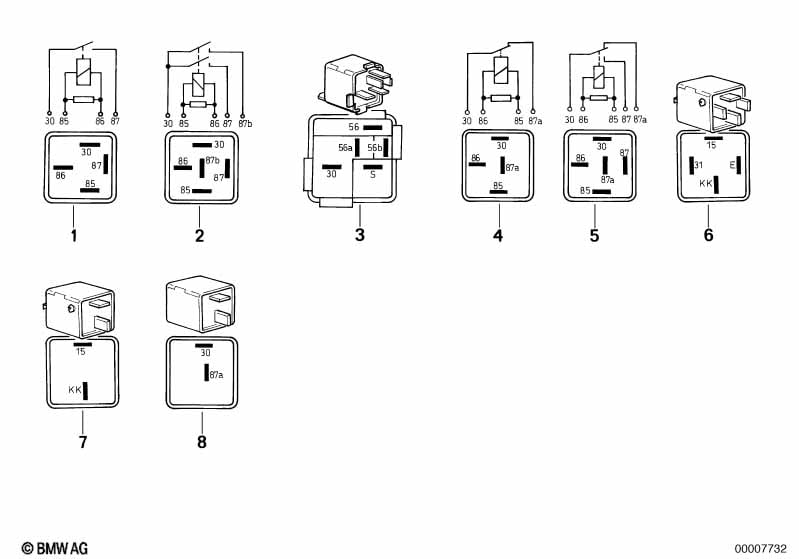

This Various relays technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Relay | GELB | 4 | 61311373585 | $23.75 | ENDED | Shop at ECS Tuning | |||
| 01 | Mini-relay | 4 | 61311373588 | $11.38 | Shop at ECS Tuning | |||||
| 01 | Diode relay | 1 | 61311380014 | $17.00 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
=Yes |
|||||||||
| 01 | Relay, make contact, white green | 1 | 61368373700 | $13.96 | Shop at ECS Tuning | |||||
| For vehicles with Fog lights |
=Yes |
|||||||||
| 02 | Relay, two-pole make contact, black | 2 | 61368353447 | $13.96 | Shop at ECS Tuning | |||||
| 03 | Relay | 1 | 61311362386 | $47.14 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Rear fog light |
=Yes |
|||||||||
| 04 | Relay | 1 | 61311373916 | $23.75 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Electr. window lifter |
=Yes |
|||||||||
| 05 | Relay, change-over contact,signal violet | 1 | 61361388911 | $13.96 | Shop at ECS Tuning | |||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 07 | Control unit | 1 | 03/1988 | 61361388379 | Shop at ECS Tuning | |||||
| 08 | Connection plug | 1 | 61311376091 | ENDED | Shop at ECS Tuning | |||||
| 08 | Plug connector, beige | 30/87A | 1 | 61368366551 | $5.78 | SI 121994675 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
