Battery for BMW 7 Series E23 730 (1979)

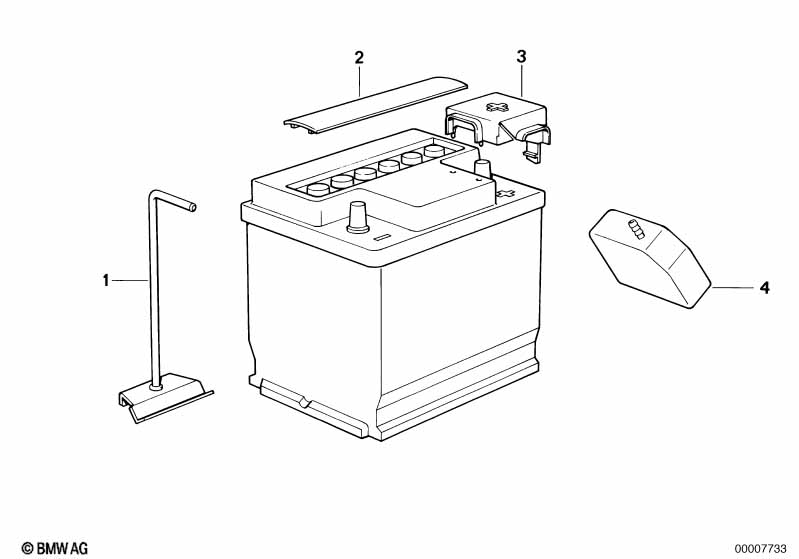

This Battery technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 730. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Battery hold down | 217MM | 1 | 61211356881 | $11.23 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover | 1 | 61213906708 | Shop at ECS Tuning | ||||||
| 03 | Cover positive battery terminal | 1 | 61211385139 | $5.92 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 730 Battery?
- This technical diagram illustrates the Battery within the Vehicle electrical system group for the 7 Series E23 730 produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Battery hold down (Part #61211356881).
- Which models use the hardware listed in this Battery?
- The hardware and components featured in the Battery are specific to the 7 Series E23 730 produced during 1979. These technical specifications ensure that parts like the Battery hold down (61211356881) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Battery assembly?
- Each item in the Battery corresponds to the numbered list below the illustration. For the 7 Series E23 730, you can identify the Battery hold down by locating its position on the schematic, which then links to the official BMW part number 61211356881 for the Vehicle electrical system section.
