Fuse box for BMW 7 Series E32 730i (1994)

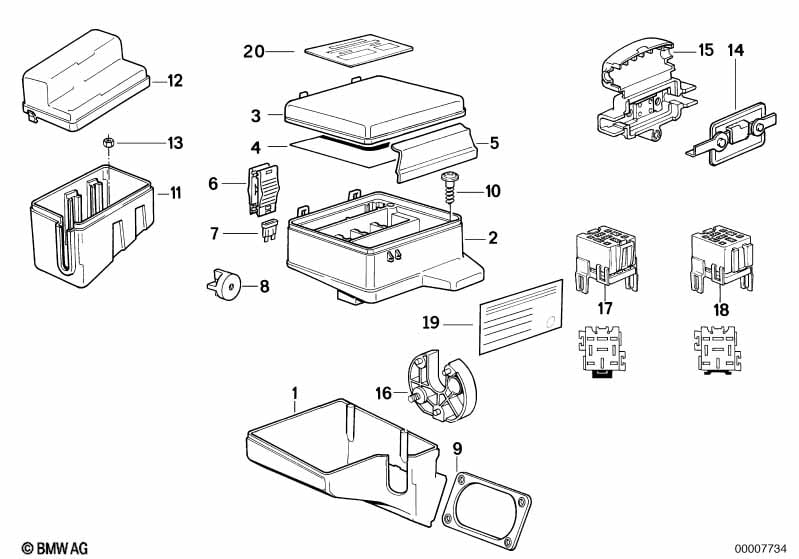

This Fuse box technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 08 | Rubber mounting for wiring box | 1 | 61131379402 | $2.83 | ENDED | Shop at ECS Tuning | ||||
| 09 | Gasket for wiring box | 1 | 61131374028 | $5.80 | ENDED | Shop at ECS Tuning | ||||
| 10 | Torx bolt | 7 | 61131379738 | $1.15 | ENDED | Shop at ECS Tuning | ||||
| 11 | Wiring box | 1 | 61131382419 | $10.72 | Shop at ECS Tuning | |||||
| 12 | Relay box cover | 1 | 61138368638 | ENDED | Shop at ECS Tuning | |||||
| 13 | Plastic nut for coarse threaded pin | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 14 | Fuse battery cable positive | 80A | 1 | 61131382065 | $11.28 | ENDED | Shop at ECS Tuning | |||
| 15 | Fuse box | 1 | 61131388270 | $17.95 | Shop at ECS Tuning | |||||
| 16 | Base B+ | 1 | 61131379082 | $30.57 | Shop at ECS Tuning | |||||
| 17 | Relay holder, black white | 1 | 61131389111 | $5.43 | Shop at ECS Tuning | |||||
| 17 | Relais base black | 1 | 61131389112 | $5.43 | Shop at ECS Tuning | |||||
| 18 | Relay holder, black white | 1 | 61131389113 | $5.32 | Shop at ECS Tuning | |||||
| 18 | Relais base black | 1 | 61131389114 | $5.32 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 730i Fuse box?
- This technical diagram illustrates the Fuse box within the Vehicle electrical system group for the 7 Series E32 730i produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Rubber mounting for wiring box (Part #61131379402).
- Which models use the hardware listed in this Fuse box?
- The hardware and components featured in the Fuse box are specific to the 7 Series E32 730i produced during 1994. These technical specifications ensure that parts like the Rubber mounting for wiring box (61131379402) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuse box assembly?
- Each item in the Fuse box corresponds to the numbered list below the illustration. For the 7 Series E32 730i, you can identify the Rubber mounting for wiring box by locating its position on the schematic, which then links to the official BMW part number 61131379402 for the Vehicle electrical system section.
