Empty BMW battery for BMW 7 Series E32 730i (1988)

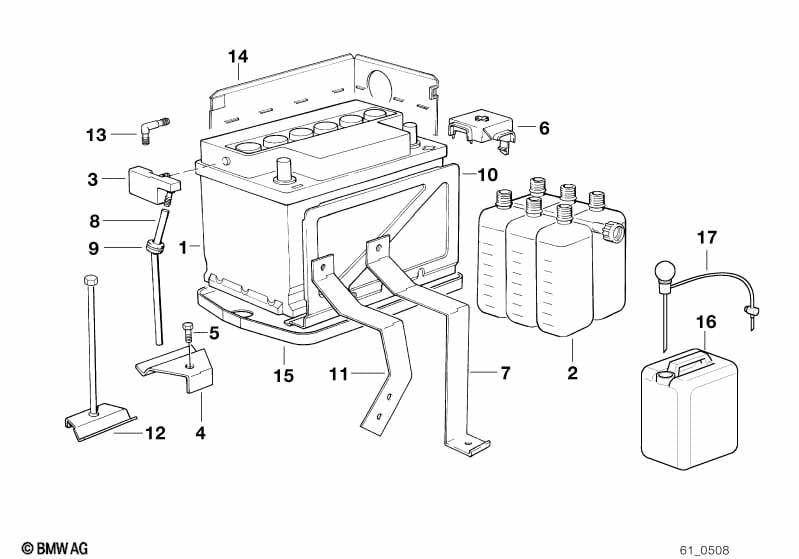

This Empty BMW battery technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Original BMW battery (Warranty only) | 83AH | 1 | 61212432653 | Shop at ECS Tuning | |||||
| 02 | Battery acid parcel (6 bottles) | 70/75/80/85AH | 1 | 61219058697 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Switzerland |
L804A=Yes |
|||||||||
| 02 | Battery acid parcel (6 bottles) | 2000ML | X | 61219059010 | ENDED | Shop at ECS Tuning | ||||
| 03 | Expansion tank | 1 | 61211376693 | $3.38 | Shop at ECS Tuning | |||||
| 03 | Container | 1 | 61211386140 | ENDED | Shop at ECS Tuning | |||||
| 04 | Battery hold down | 1 | 61211370816 | $1.83 | Shop at ECS Tuning | |||||
| For vehicles with National version Belgium |
L811A=Yes |
|||||||||
| 04 | Battery hold down | 1 | 04/1994 | 61217564274 | $1.88 | Shop at ECS Tuning | ||||
| 04 | Battery hold down | 1 | 61217631587 | Shop at ECS Tuning | ||||||
| 05 | Hex bolt | M6X12-8.8-ZNNIV | 1 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 06 | Cover positive battery terminal | FLACHE VERSION | 1 | 61211386645 | $5.92 | Shop at ECS Tuning | ||||
| 07 | Battery hold down | 1 | 61211382669 | $49.94 | Shop at ECS Tuning | |||||
| 08 | Hose running meter | X | 61211377745 | $1.97 | Shop at ECS Tuning | |||||
| 09 | Grommet | 10,5MM | 1 | 61218050550 | $0.35 | Shop at ECS Tuning | ||||
| 11 | Battery hold down | 1 | 61211388963 | $9.27 | Shop at ECS Tuning | |||||
| 13 | Connection elbow | 1 | 61211377835 | $0.52 | Shop at ECS Tuning | |||||
| 16 | Battery acid canister, 30 liters | X | 61219069013 | ENDED | Shop at ECS Tuning | |||||
| 17 | Filling device f battery acid | X | 61219069014 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 730i Empty BMW battery?
- This technical diagram illustrates the Empty BMW battery within the Vehicle electrical system group for the 7 Series E32 730i produced during 1988. It provides a detailed exploded view of the components, identifying key parts such as the Original BMW battery (Warranty only) (Part #61212432653).
- Which models use the hardware listed in this Empty BMW battery?
- The hardware and components featured in the Empty BMW battery are specific to the 7 Series E32 730i produced during 1988. These technical specifications ensure that parts like the Original BMW battery (Warranty only) (61212432653) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Empty BMW battery assembly?
- Each item in the Empty BMW battery corresponds to the numbered list below the illustration. For the 7 Series E32 730i, you can identify the Original BMW battery (Warranty only) by locating its position on the schematic, which then links to the official BMW part number 61212432653 for the Vehicle electrical system section.
