Wiring harness levelling device for BMW 5 Series E28 528i (1987)

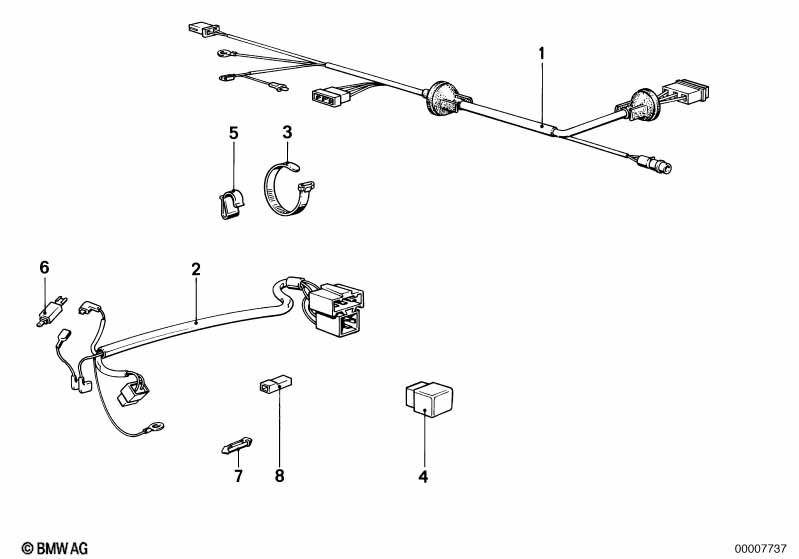

This Wiring harness levelling device technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring harness levelling device | 1 | 01/1984 | 37141155653 | ENDED | Shop at ECS Tuning | ||||
| 01 | Wiring harness levelling device | 1 | 09/1984 | 37141155758 | $111.32 | ENDED | Shop at ECS Tuning | |||
| 02 | Wiring hydro pump | 1 | 61121365612 | $74.77 | ENDED | Shop at ECS Tuning | ||||
| 03 | Cable tie | L=292MM/B=4,8MM | 1 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 04 | Relay | 1 | 61311154784 | ENDED | Shop at ECS Tuning | |||||
| 05 | Clamp | 2 | 07147202015 | Shop at ECS Tuning | ||||||
| 06 | Diode | 1 | 61311358265 | Shop at ECS Tuning | ||||||
| 07 | Fuse | 25A | 1 | 61138760139 | $1.83 | ENDED | Shop at ECS Tuning | |||
| 08 | Insulation sleeve | 1 | 61131354668 | $0.63 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
