Battery for BMW 3 Series E30 320i (1992)

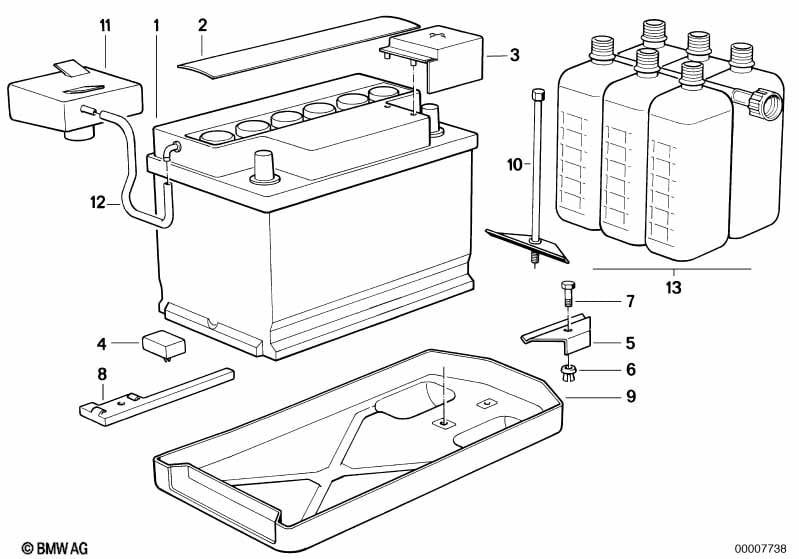

This Battery technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Original BMW battery (Warranty only) | 65AH | 1 | 61212432651 | Shop at ECS Tuning | |||||
| 01 | Empty BMW battery | 50AH | 1 | 61218377131 | ENDED | Shop at ECS Tuning | ||||
| 02 | Battery cover | 50AH/55AH | 1 | 61211356429 | $1.70 | ENDED | Shop at ECS Tuning | |||
| 03 | Cover positive battery terminal | HOHE VERSION | 1 | 61211370990 | $5.92 | Shop at ECS Tuning | ||||
| 04 | Spacer | 2 | 61211350825 | $1.20 | Shop at ECS Tuning | |||||
| 05 | Battery hold down | 1 | 61211370816 | $1.83 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M6X25 | 1 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
| 13 | Battery acid parcel (6 bottles) | 55/65AH | 1 | 61219057191 | Shop at ECS Tuning | |||||
| 13 | Battery acid parcel (6 bottles) | 50AH | 1 | 61219057200 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 320i Battery?
- This technical diagram illustrates the Battery within the Vehicle electrical system group for the 3 Series E30 320i produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Original BMW battery (Warranty only) (Part #61212432651).
- Which models use the hardware listed in this Battery?
- The hardware and components featured in the Battery are specific to the 3 Series E30 320i produced during 1992. These technical specifications ensure that parts like the Original BMW battery (Warranty only) (61212432651) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Battery assembly?
- Each item in the Battery corresponds to the numbered list below the illustration. For the 3 Series E30 320i, you can identify the Original BMW battery (Warranty only) by locating its position on the schematic, which then links to the official BMW part number 61212432651 for the Vehicle electrical system section.
