Additional battery for BMW 7 Series E23 735i (1982)

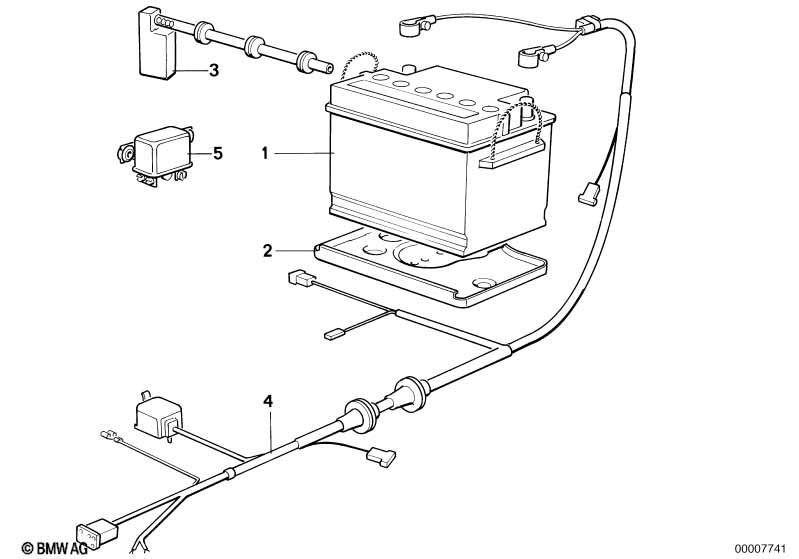

This Additional battery technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Empty battery | 75AH VARTA | 1 | 61211370528 | $191.05 | ENDED | Shop at ECS Tuning | |||
| 02 | Battery tray | INTERNE NUMMER | 1 | 41111836256 | ENDED | Shop at ECS Tuning | ||||
| 03 | Container | 1 | 61211386140 | ENDED | Shop at ECS Tuning | |||||
| 04 | Wiring set | 1 | 61121374741 | ENDED | Shop at ECS Tuning | |||||
| 05 | Relay battery disconnection | 1 | 61311378211 | $196.42 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 735i Additional battery?
- This technical diagram illustrates the Additional battery within the Vehicle electrical system group for the 7 Series E23 735i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Empty battery (Part #61211370528).
- Which models use the hardware listed in this Additional battery?
- The hardware and components featured in the Additional battery are specific to the 7 Series E23 735i produced during 1982. These technical specifications ensure that parts like the Empty battery (61211370528) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Additional battery assembly?
- Each item in the Additional battery corresponds to the numbered list below the illustration. For the 7 Series E23 735i, you can identify the Empty battery by locating its position on the schematic, which then links to the official BMW part number 61211370528 for the Vehicle electrical system section.
