Steering column switch for BMW 5 Series E12 528 (1977)

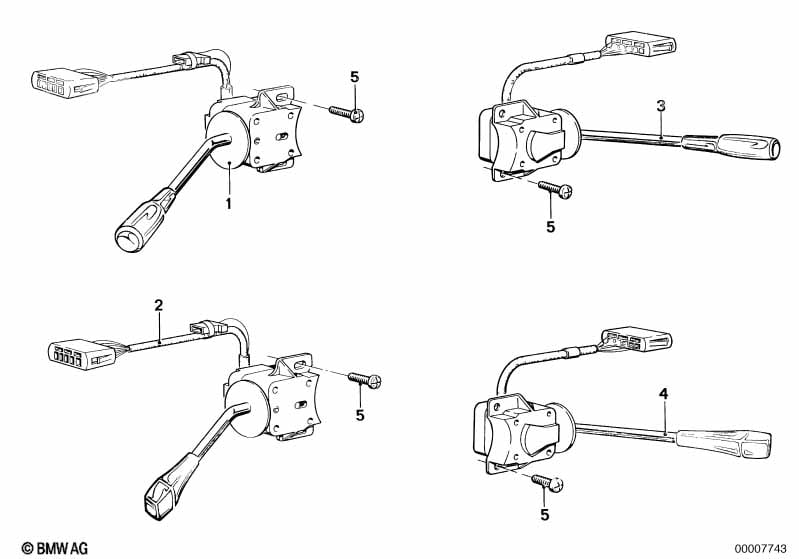

This Steering column switch technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Switch turn signal,dip-dim control | 1 | 08/1978 | 61311363644 | $116.22 | ENDED | Shop at ECS Tuning | |||
| 01 | Switch turn signal,dip-dim control | 1 | 08/1978 | 61311363645 | ENDED | Shop at ECS Tuning | ||||
| 01 | Switch turn signal,dip-dim control | 1 | 07/1976 | 08/1978 | 61311363644 | $116.22 | ENDED | Shop at ECS Tuning | ||
| 01 | Switch turn signal,dip-dim control | 1 | 07/1976 | 08/1978 | 61311363645 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version italy |
L814A=Yes |
|||||||||
| 01 | Switch turn signal,dip-dim control | 1 | 08/1978 | 61311363659 | $82.58 | ENDED | Shop at ECS Tuning | |||
| 01 | Switch turn signal,dip-dim control | 1 | 07/1976 | 08/1978 | 61311363659 | $82.58 | ENDED | Shop at ECS Tuning | ||
| 03 | Wiper switch | 1 | 08/1978 | 61311360948 | $126.35 | ENDED | Shop at ECS Tuning | |||
| 05 | Fillister head screw | M5X8-Z3 | 4 | 07119906822 | $0.18 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
