Switch hand brake control for BMW 3 Series E21 318i (1982)

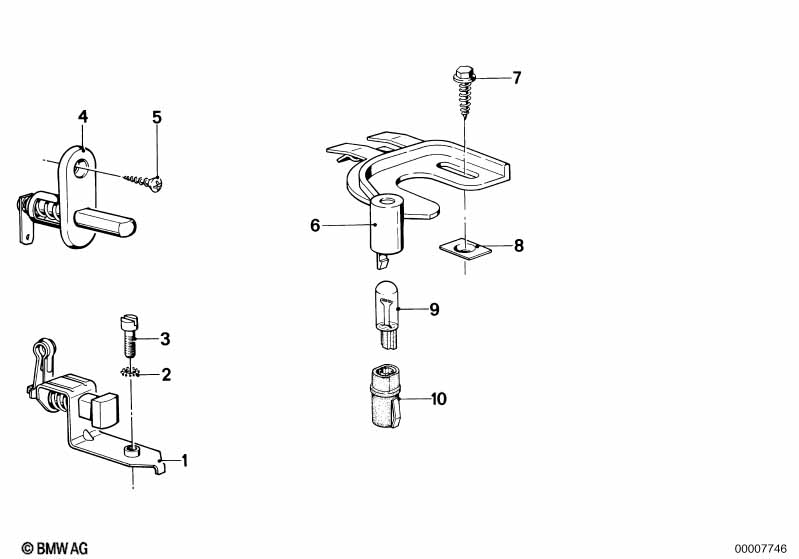

This Switch hand brake control technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Switch hand brake control | 1 | 61311369771 | $14.76 | Shop at ECS Tuning | |||||
| 02 | Tooth washer | A4,3 | 1 | 07119936037 | $0.36 | Shop at ECS Tuning | ||||
| 03 | Fillister head screw | M4X6 | 1 | 07119907657 | $0.13 | Shop at ECS Tuning | ||||
| 04 | Switch | 2 | 61311368430 | $7.86 | Shop at ECS Tuning | |||||
| 05 | Csk.lenshead screw | ST3,9X9,5 | 2 | 07119902216 | $0.14 | ENDED | Shop at ECS Tuning | |||
| 06 | Lamp support gear indicator | 1 | 63311359685 | $1.83 | Shop at ECS Tuning | |||||
| 07 | Sheet metal screw | 4,2X16 | 1 | 07119904265 | Shop at ECS Tuning | |||||
| 08 | Body nut | ST4,2-2ZNS | 1 | 07129901645 | $0.11 | Shop at ECS Tuning | ||||
| 09 | Bulb | 12V 1,2W | X | 63217167000 | $3.00 | Shop at ECS Tuning | ||||
| 10 | Bulb socket | 1 | 61131355640 | $3.63 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
