Various additional wiring sets for BMW 5 Series E34 525td (1995)

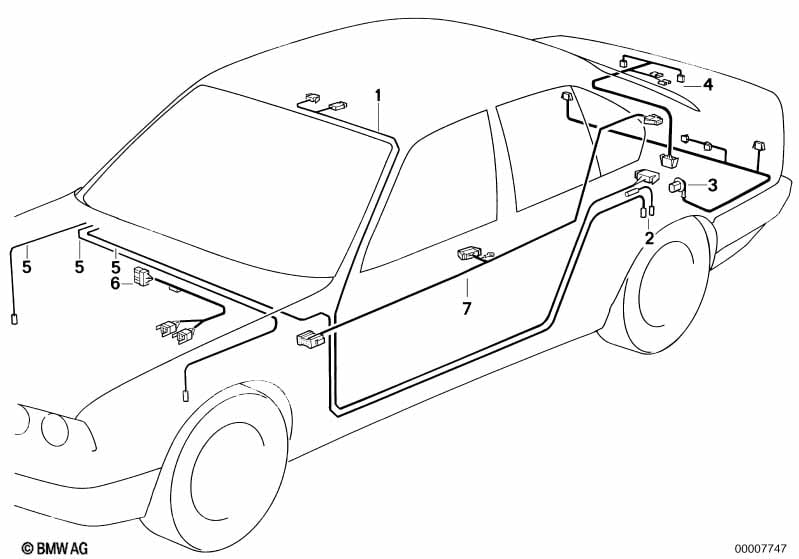

This Various additional wiring sets technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring set electr.sliding lifting roof | 1 | 61121379475 | $47.20 | ENDED | Shop at ECS Tuning | ||||
| 02 | Wiring brake wear warning indicator | 1 | 61121379816 | $30.43 | ENDED | Shop at ECS Tuning | ||||
| 03 | Wiring set trailer coupling | 1 | 61128351208 | ENDED | Shop at ECS Tuning | |||||
| 04 | Wiring trunk lid | 1 | 61128366875 | $156.95 | SI 610194757 | Shop at ECS Tuning | ||||
| 05 | Repair cable ABS | X | 61139061686 | $43.36 | ENDED | Shop at ECS Tuning | ||||
| 06 | Wiring "continious dim light" | 1 | 09/1990 | 61118351942 | ENDED | Shop at ECS Tuning | ||||
| 07 | Wiring sun blind | 1 | 61121388696 | $44.33 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
