Switch cigar lighter for BMW 5 Series E12 518 (1975)

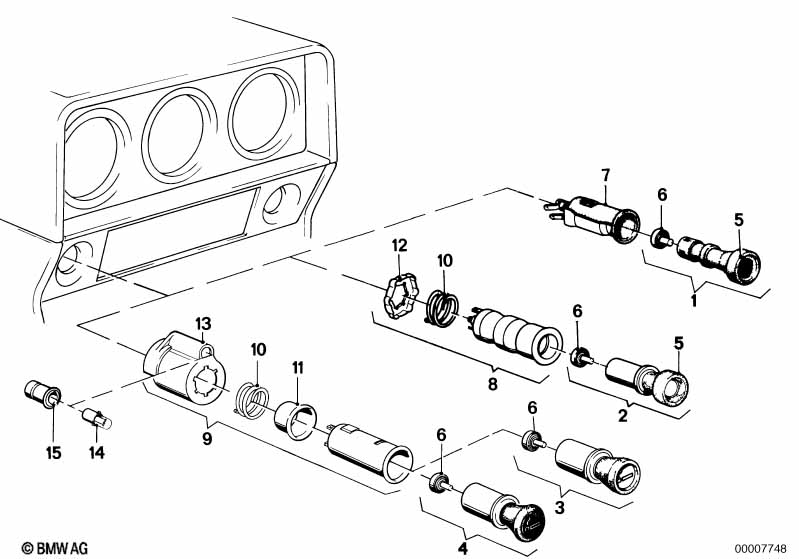

This Switch cigar lighter technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 518. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Lighter element | 1 | 08/1977 | 61341357279 | $16.98 | ENDED | Shop at ECS Tuning | |||
| 05 | Button | 1 | 61311354483 | ENDED | Shop at ECS Tuning | |||||
| 06 | Glow filament | 12 VOLT | 1 | 61348648111 | $5.27 | Shop at ECS Tuning | ||||
| 08 | Cigarette lighter socket | 1 | 08/1974 | 03/1977 | 61341368728 | $48.94 | ENDED | Shop at ECS Tuning | ||
| 10 | Compression spring | 1 | 61341357281 | ENDED | Shop at ECS Tuning | |||||
| 12 | Supporting ring | 1 | 08/1974 | 03/1977 | 61341357858 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 518 Switch cigar lighter?
- This technical diagram illustrates the Switch cigar lighter within the Vehicle electrical system group for the 5 Series E12 518 produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Lighter element (Part #61341357279).
- Which models use the hardware listed in this Switch cigar lighter?
- The hardware and components featured in the Switch cigar lighter are specific to the 5 Series E12 518 produced during 1975. These technical specifications ensure that parts like the Lighter element (61341357279) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Switch cigar lighter assembly?
- Each item in the Switch cigar lighter corresponds to the numbered list below the illustration. For the 5 Series E12 518, you can identify the Lighter element by locating its position on the schematic, which then links to the official BMW part number 61341357279 for the Vehicle electrical system section.
