Various switches for BMW 5 Series E12 528 (1977)

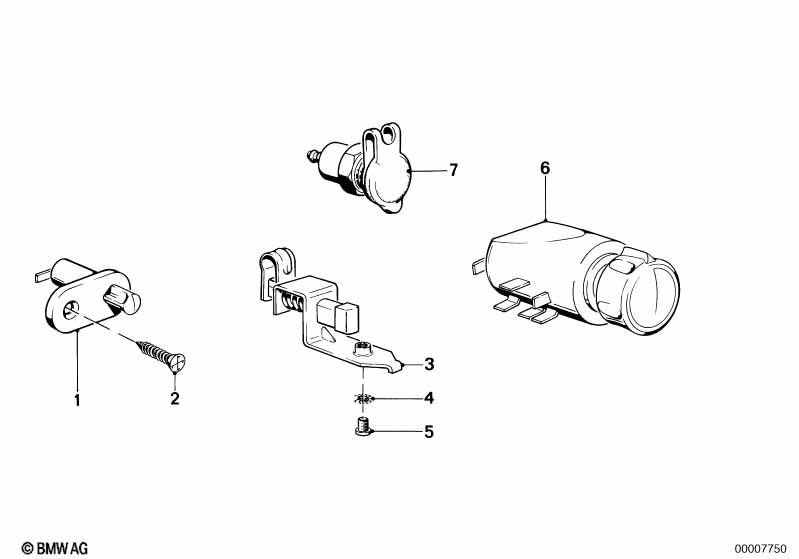

This Various switches technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Switch | 5 | 61311368430 | $7.86 | Shop at ECS Tuning | |||||
| 02 | Csk.lenshead screw | ST3,9X9,5 | 1 | 07119902216 | $0.14 | ENDED | Shop at ECS Tuning | |||
| 03 | Switch hand brake control | 1 | 61311369771 | $14.76 | Shop at ECS Tuning | |||||
| 04 | Tooth washer | A4,3 | 1 | 07119936037 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Fillister head screw | M4X6 | 1 | 07119907657 | $0.13 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 528 Various switches?
- This technical diagram illustrates the Various switches within the Vehicle electrical system group for the 5 Series E12 528 produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Switch (Part #61311368430).
- Which models use the hardware listed in this Various switches?
- The hardware and components featured in the Various switches are specific to the 5 Series E12 528 produced during 1977. These technical specifications ensure that parts like the Switch (61311368430) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Various switches assembly?
- Each item in the Various switches corresponds to the numbered list below the illustration. For the 5 Series E12 528, you can identify the Switch by locating its position on the schematic, which then links to the official BMW part number 61311368430 for the Vehicle electrical system section.
