Switch for BMW 5 Series E12 528 (1976)

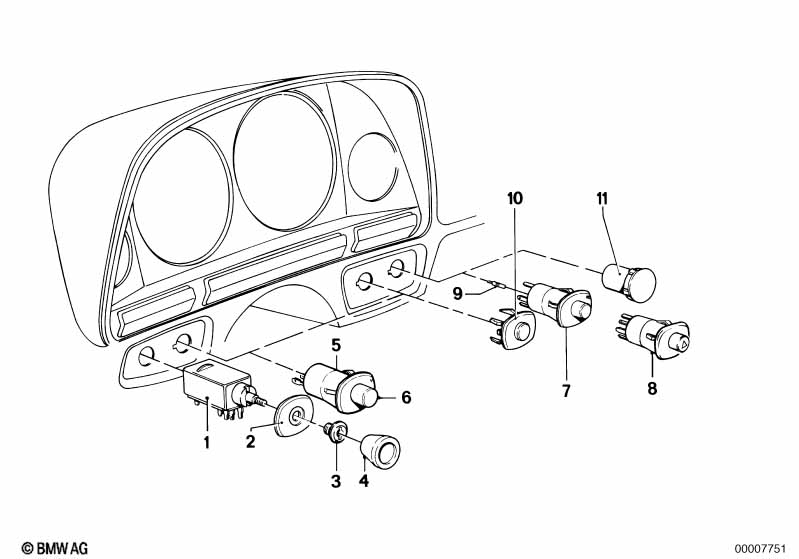

This Switch technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Light switch | 1 | 61311355791 | $145.50 | Shop at ECS Tuning | |||||
| For vehicles with National version italy |
L814A=Yes |
|||||||||
| 01 | Light switch | 1 | 61311353769 | $153.17 | ENDED | Shop at ECS Tuning | ||||
| 02 | Cover | 1 | 61311355610 | $0.74 | ENDED | Shop at ECS Tuning | ||||
| 03 | Trim ring | 1 | 64118362900 | $1.42 | ENDED | Shop at ECS Tuning | ||||
| 04 | Button | 1 | 11/1977 | 61311354483 | ENDED | Shop at ECS Tuning | ||||
| 05 | Switch fog tail light | 1 | 03/1977 | 61311355736 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Sweden version |
=Yes |
|||||||||
| 06 | Button | 1 | 61314140851 | ENDED | Shop at ECS Tuning | |||||
| 07 | Hazard warning switch | 1 | 08/1977 | 61311355735 | ENDED | Shop at ECS Tuning | ||||
| 09 | Bulb | 12V 1,2W | X | 63217167000 | $3.00 | Shop at ECS Tuning | ||||
| 10 | Plug | 1 | 61311355650 | $1.19 | ENDED | Shop at ECS Tuning | ||||
| 11 | Plug | 1 | 61311352646 | $1.90 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
