Various switches for BMW 6 Series E24 633CSi (1984)

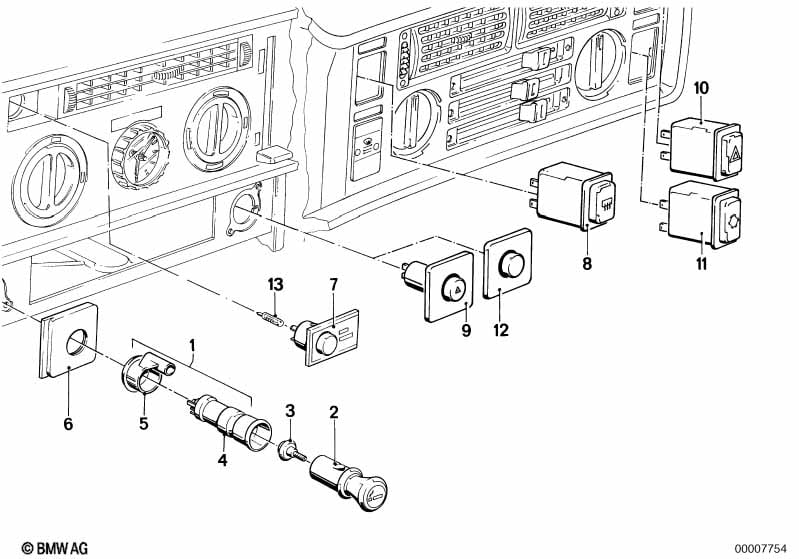

This Various switches technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cigarette lighter socket | 1 | 08/1979 | 61341366973 | ENDED | Shop at ECS Tuning | ||||

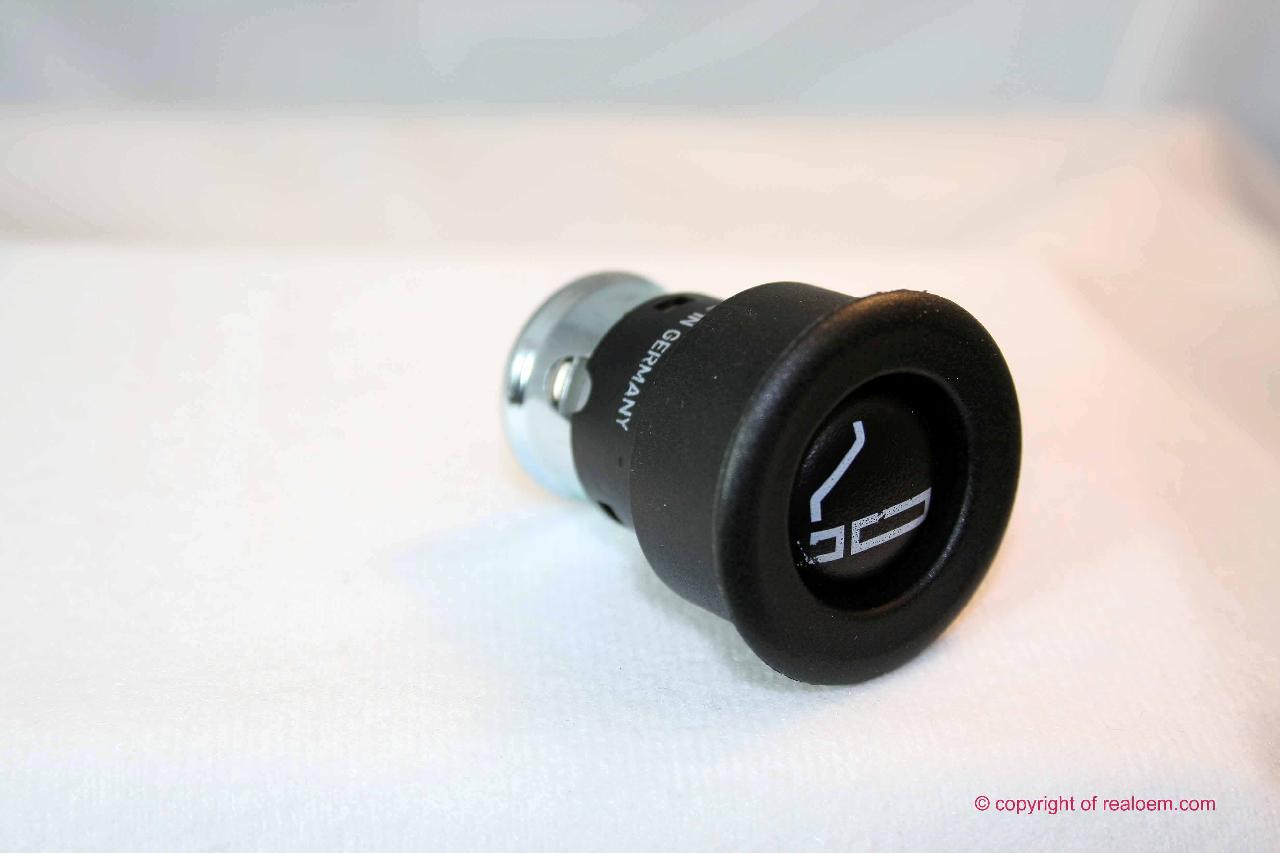

| 02 | Lighter element | 1 | 09/1982 | 61341367689 | $26.16 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Glow filament | 12 VOLT | 1 | 08/1979 | 61348648111 | $5.27 | Shop at ECS Tuning | |||

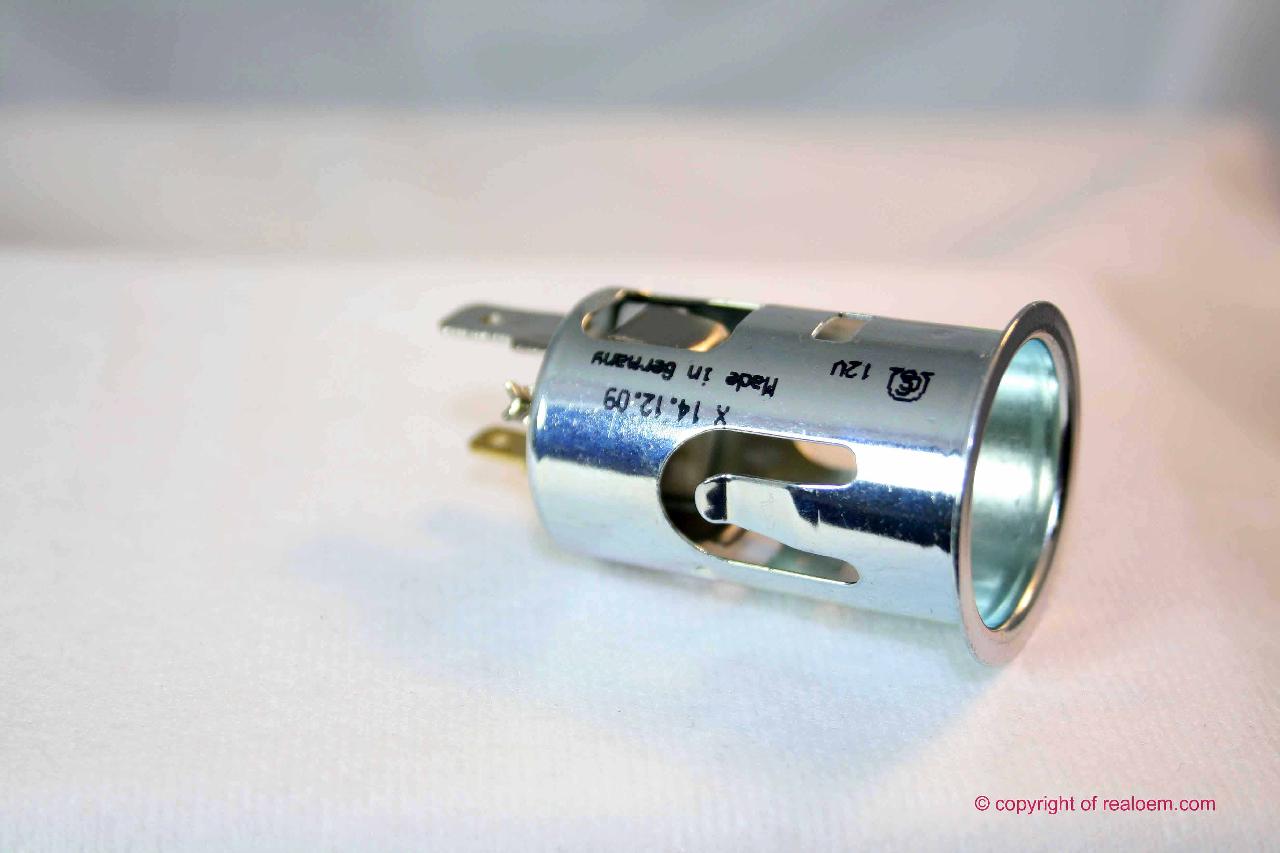

| 04 | Cigarette lighter socket | 1 | 09/1982 | 61341367690 | $11.10 | Shop at ECS Tuning | ||||
| 08 | Switch heated rear window | 1 | 09/1982 | 09/1986 | 61311376340 | $49.10 | Shop at ECS Tuning | |||
| 10 | Hazard warning switch | 1 | 09/1982 | 09/1986 | 61311366453 | $52.27 | Shop at ECS Tuning | |||
| 11 | Switch air conditioning | 1 | 09/1982 | 09/1986 | 61311372354 | $131.20 | ENDED | Shop at ECS Tuning | ||
| 12 | Plug | 1 | 09/1982 | 61311365667 | $1.13 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 633CSi Various switches?
- This technical diagram illustrates the Various switches within the Vehicle electrical system group for the 6 Series E24 633CSi produced during 1984. It provides a detailed exploded view of the components, identifying key parts such as the Cigarette lighter socket (Part #61341366973).
- Which models use the hardware listed in this Various switches?
- The hardware and components featured in the Various switches are specific to the 6 Series E24 633CSi produced during 1984. These technical specifications ensure that parts like the Cigarette lighter socket (61341366973) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Various switches assembly?
- Each item in the Various switches corresponds to the numbered list below the illustration. For the 6 Series E24 633CSi, you can identify the Cigarette lighter socket by locating its position on the schematic, which then links to the official BMW part number 61341366973 for the Vehicle electrical system section.
