Switch-center console for BMW 7 Series E23 735i (1986)

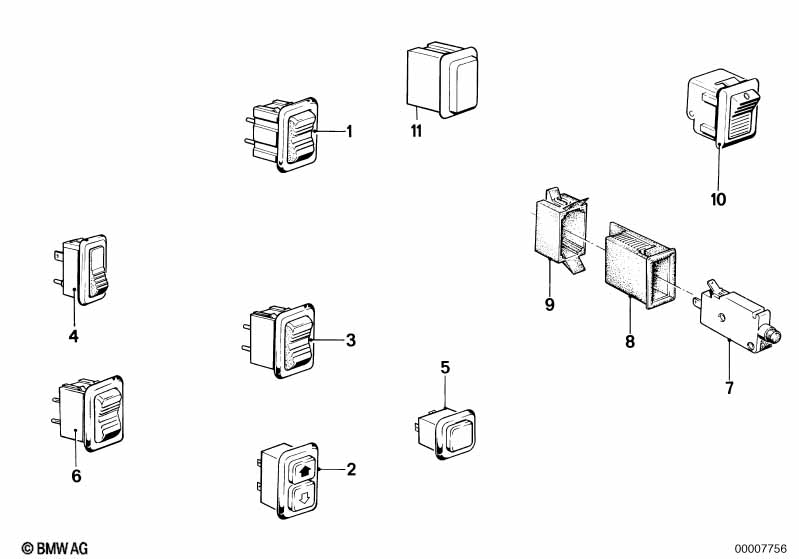

This Switch-center console technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Electr. window lifter |
=Yes |
|||||||||
| 02 | Switch | 4 | 09/1981 | 09/1986 | 61311367373 | $41.36 | Shop at ECS Tuning | |||
| 02 | Switch illuminated | 4 | 09/1981 | 09/1986 | 61311377905 | $55.66 | Shop at ECS Tuning | |||
| 03 | Switch | 2 | 61311364169 | $58.71 | ENDED | Shop at ECS Tuning | ||||
| 05 | Safety switch electr.window lifter | 1 | 09/1979 | 61311385796 | $17.89 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO ADJUSTABLE REAR SEAT CODE 722-723-724-725 UPHOLSTERY LEATHER BUFFALO |
||||||||||
| 06 | Switch | 2 | 61311364169 | $58.71 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Lift-up-and-slide-back sunroof |
=Yes |
|||||||||
| 06 | Switch | 1 | 09/1981 | 61311367373 | $41.36 | Shop at ECS Tuning | ||||
| 06 | Switch illuminated | 1 | 09/1981 | 61311377905 | $55.66 | Shop at ECS Tuning | ||||
| 11 | Circuit breaker | 1 | 03/1985 | 61311369375 | $159.26 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
