Various switches for BMW 7 Series E23 735i (1982)

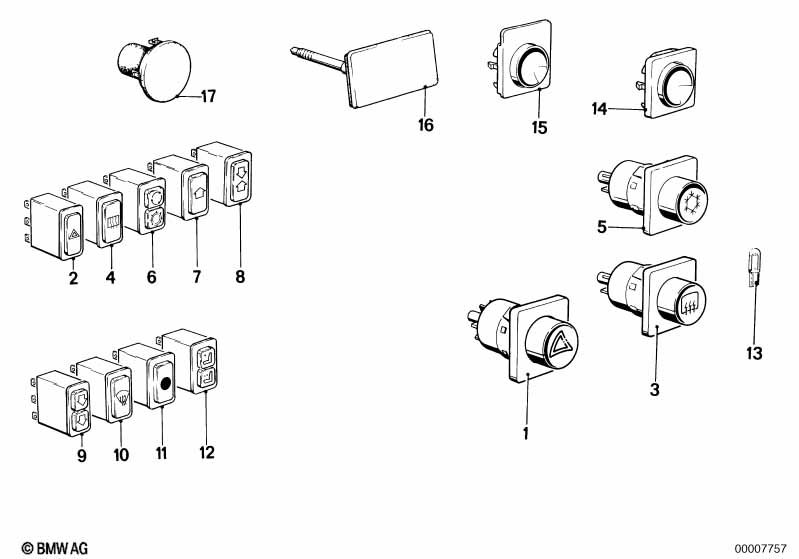

This Various switches technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Hazard warning switch | 1 | 08/1979 | 61311366453 | $52.27 | Shop at ECS Tuning | ||||
| 04 | Switch heated rear window | 1 | 08/1979 | 61311376417 | $35.56 | Shop at ECS Tuning | ||||
| 06 | Switch air conditioning | 1 | 08/1979 | 61311366473 | $49.70 | Shop at ECS Tuning | ||||
| 07 | Switch air distribution upper | 1 | 08/1979 | 61311366488 | $81.56 | ENDED | Shop at ECS Tuning | |||
| 08 | Switch air distribution center | 1 | 08/1979 | 61311366491 | $39.83 | Shop at ECS Tuning | ||||
| 09 | Switch air distribution lower | 1 | 08/1979 | 61311366497 | $44.03 | Shop at ECS Tuning | ||||
| 10 | Switch defrost | 1 | 08/1979 | 61311366902 | $37.08 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 10 | Switch defrost | 1 | 08/1979 | 61311366485 | $74.22 | Shop at ECS Tuning | ||||
| 11 | Switch air distribution closed | 1 | 08/1979 | 61311366494 | $27.29 | ENDED | Shop at ECS Tuning | |||
| 12 | Seat heating switch | 2 | 08/1979 | 61311366464 | $77.00 | ENDED | Shop at ECS Tuning | |||
| 13 | Bulb | 12V 1,2W | X | 63217167000 | $3.00 | Shop at ECS Tuning | ||||
| 15 | Plug | 1 | 61311362954 | $1.13 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version italy |
L814A=Yes |
|||||||||
| 17 | Lock | 1 | 61311364869 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
