Various switches for BMW 7 Series E23 733i (1986)

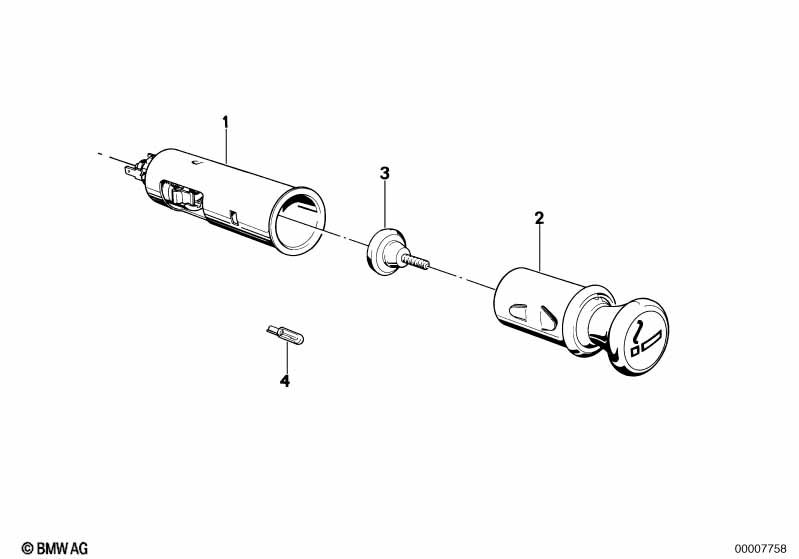

This Various switches technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cigarette lighter socket | 1 | 61341368728 | $48.94 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO LIGHTER REAR | ||||||||||
| 01 | Cigarette lighter socket | 1 | 01/1983 | 61341367690 | $11.10 | Shop at ECS Tuning | ||||
| 02 | Lighter element | 2 | 61341364532 | $18.67 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO LIGHTER REAR | ||||||||||
| 02 | Lighter element | 1 | 01/1983 | 61341367689 | $26.16 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Glow filament | 12 VOLT | 2 | 61348648111 | $5.27 | Shop at ECS Tuning | ||||
| 04 | Bulb | 12V 1,2W | X | 63217167000 | $3.00 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
