Mirror switch for BMW 7 Series E23 728i (1986)

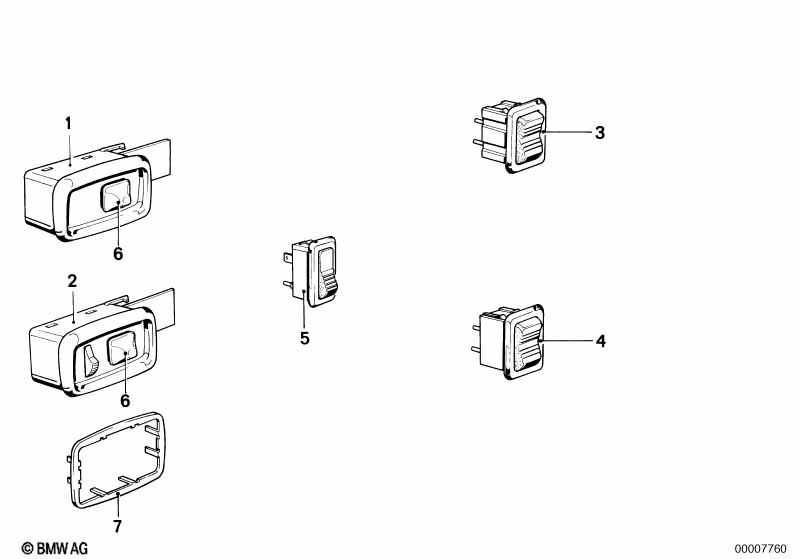

This Mirror switch technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Mirror switch with change-over switch | 1 | 01/1983 | 61311378847 | $67.34 | Shop at ECS Tuning | ||||
| For vehicles with Electr. window lifter |
=Yes |
|||||||||
| 03 | Switch | 4 | 01/1982 | 01/1987 | 61311367373 | $41.36 | Shop at ECS Tuning | |||
| 03 | Switch illuminated | 4 | 01/1982 | 01/1987 | 61311377905 | $55.66 | Shop at ECS Tuning | |||
| For vehicles with Lift-up-and-slide-back sunroof |
=Yes |
|||||||||
| 04 | Switch | 1 | 10/1980 | 61311366458 | $42.75 | Shop at ECS Tuning | ||||
| 05 | Safety switch electr.window lifter | 1 | 10/1980 | 61311385796 | $17.89 | Shop at ECS Tuning | ||||
| 06 | Knob, switch exterior mirror | 1 | 61311367537 | $3.24 | Shop at ECS Tuning | |||||
| 07 | Switch cover | 1 | 51411854847 | $2.63 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
