Switch-dash board for BMW 3 Series E21 320i (1977)

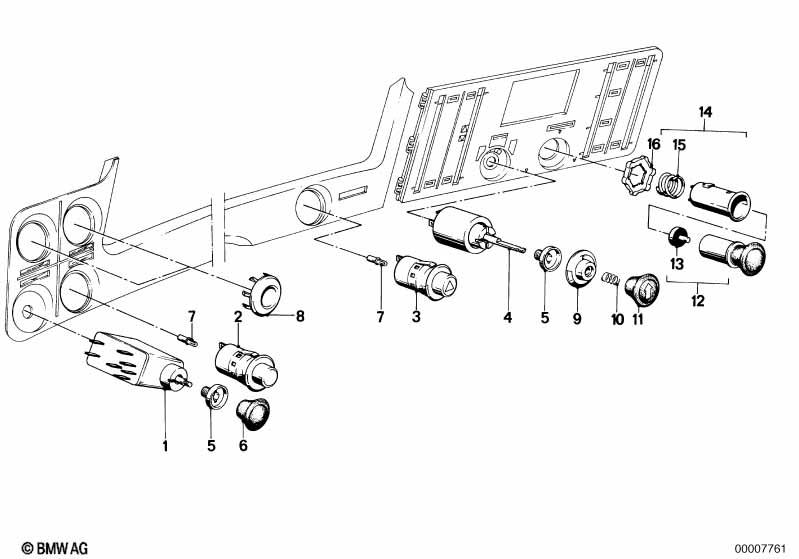

This Switch-dash board technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Light switch | 1 | 09/1979 | 61311355791 | $145.50 | Shop at ECS Tuning | ||||
| 02 | Switch heated rear window | 1 | 09/1979 | 61311356623 | $49.59 | Shop at ECS Tuning | ||||
| 03 | Hazard warning switch | 1 | 09/1978 | 61311357077 | $58.21 | Shop at ECS Tuning | ||||
| 04 | Switch blower | 1 | 09/1977 | 61311358827 | $31.59 | Shop at ECS Tuning | ||||
| 05 | Trim ring | 2 | 09/1979 | 64118362900 | $1.42 | ENDED | Shop at ECS Tuning | |||
| 06 | Button | 1 | 09/1977 | 61311356640 | ENDED | Shop at ECS Tuning | ||||
| 07 | Bulb | 12V 1,2W | X | 09/1979 | 63217167000 | $3.00 | Shop at ECS Tuning | |||
| 08 | Plug | 2 | 09/1979 | 61311356583 | $1.23 | Shop at ECS Tuning | ||||
| 09 | Cover | 1 | 09/1977 | 61311356637 | ENDED | Shop at ECS Tuning | ||||
| 10 | Compression spring | 1 | 09/1977 | 61311357818 | ENDED | Shop at ECS Tuning | ||||
| 11 | Knob temperature | 1 | 09/1977 | 61311356625 | ENDED | Shop at ECS Tuning | ||||
| 12 | Lighter element | 1 | 09/1979 | 61341364532 | $18.67 | Shop at ECS Tuning | ||||
| 13 | Glow filament | 12 VOLT | 1 | 09/1979 | 61348648111 | $5.27 | Shop at ECS Tuning | |||
| 14 | Cigarette lighter socket | 1 | 61341368728 | $48.94 | ENDED | Shop at ECS Tuning | ||||
| 15 | Compression spring | 1 | 09/1979 | 61341357281 | ENDED | Shop at ECS Tuning | ||||
| 16 | Supporting ring | 1 | 09/1979 | 61341357858 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
