Steering column switch for BMW 5 Series E28 520i (1988)

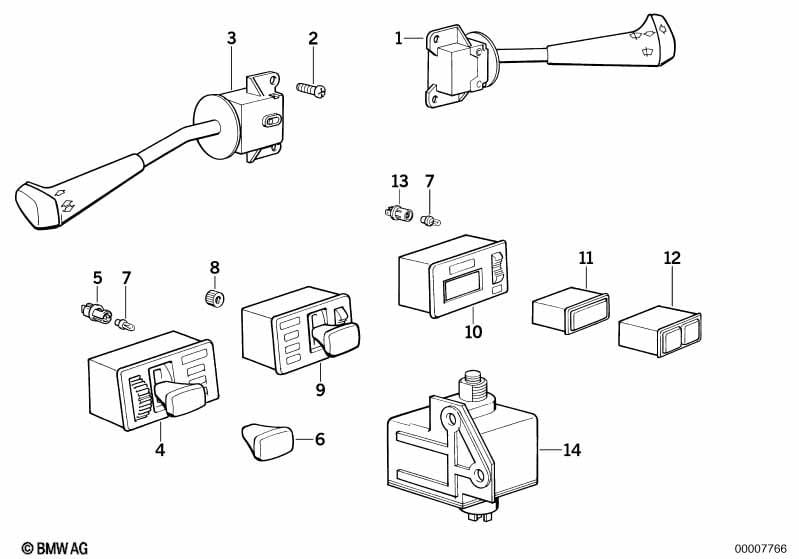

This Steering column switch technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiper switch | 1 | 01/1986 | 61311377976 | ENDED | Shop at ECS Tuning | ||||
| 02 | Fillister head screw | M5X12-Z3-ZN | 4 | 07119906816 | $0.18 | Shop at ECS Tuning | ||||
| 03 | Switch turn signal,dip-dim control | 1 | 01/1986 | 61311377081 | $93.82 | Shop at ECS Tuning | ||||
| For vehicles with On-board computer |
=Yes |
|||||||||
| 03 | Switch turn signal,dip-dim control | 1 | 01/1986 | 61311377985 | $241.23 | Shop at ECS Tuning | ||||
| 04 | Light switch | 1 | 61311375516 | ENDED | Shop at ECS Tuning | |||||
| 05 | Bulb socket | 2 | 61311362306 | $2.00 | Shop at ECS Tuning | |||||
| 06 | Button | 2 | 61311369933 | $7.27 | ENDED | Shop at ECS Tuning | ||||
| 07 | Bulb | 12V 1,2W | X | 63217167000 | $3.00 | Shop at ECS Tuning | ||||
| 08 | Knurled head nut | M5 | 2 | 07119920320 | ENDED | Shop at ECS Tuning | ||||
| 10 | Switch cover | 1 | 61311375991 | ENDED | Shop at ECS Tuning | |||||
| 11 | Switch fog lamp and fog tail lamp | 1 | 01/1987 | 61311380312 | Shop at ECS Tuning | |||||
| 12 | Switch fog tail light | 1 | 01/1987 | 61311380352 | $114.88 | ENDED | Shop at ECS Tuning | |||
| 13 | Bulb socket | X | 01/1986 | 64111366170 | $2.37 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
