Switch for BMW 5 Series E28 533i (1982)

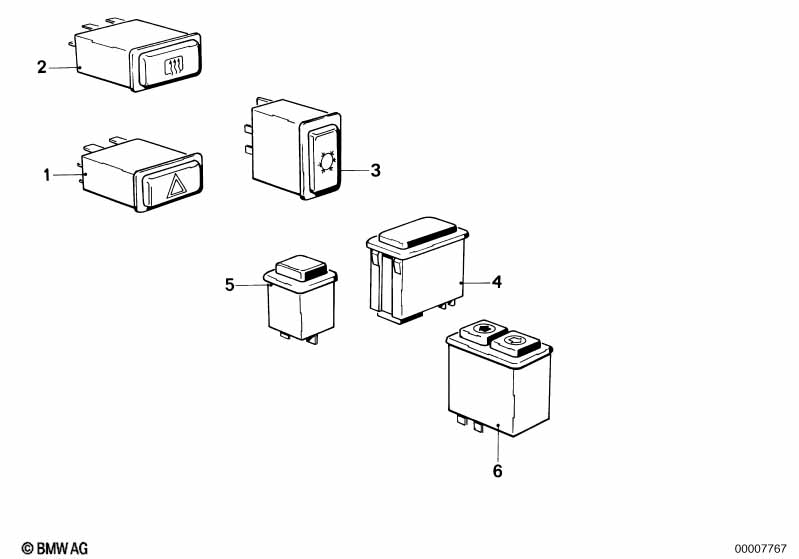

This Switch technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 533i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hazard warning switch | 1 | 09/1982 | 61311372893 | $64.80 | Shop at ECS Tuning | ||||
| 02 | Switch heated rear window | 1 | 09/1986 | 61311376408 | ENDED | Shop at ECS Tuning | ||||
| 04 | Circuit breaker | 1 | 61311369375 | $159.26 | Shop at ECS Tuning | |||||
| 05 | Safety switch electr.window lifter | 1 | 61311385796 | $17.89 | Shop at ECS Tuning | |||||
| For vehicles with Lift-up-and-slide-back sunroof, electric |
=Yes |
|||||||||
| 06 | Switch | 1 | 09/1986 | 61311367373 | $41.36 | Shop at ECS Tuning | ||||
| 06 | Switch illuminated | 1 | 09/1986 | 61311377905 | $55.66 | Shop at ECS Tuning | ||||
| For vehicles with Electr. window lifter |
=Yes |
|||||||||
| 06 | Switch | 6 | 09/1986 | 61311367373 | $41.36 | Shop at ECS Tuning | ||||
| 06 | Switch illuminated | 6 | 09/1986 | 61311377905 | $55.66 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
