Various switches for BMW 5 Series E28 518i (1986)

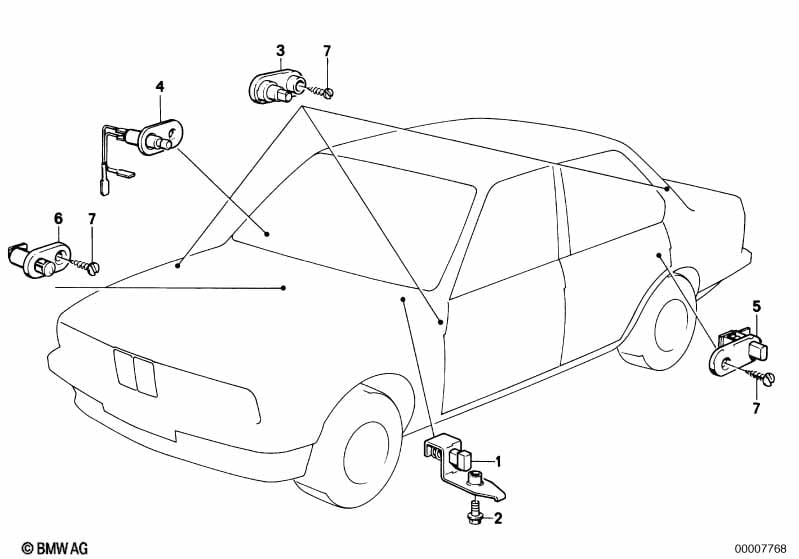

This Various switches technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 518i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Switch hand brake control | 1 | 61311369771 | $14.76 | Shop at ECS Tuning | |||||
| 02 | Hex bolt | 1 | 61311362973 | $9.82 | ENDED | Shop at ECS Tuning | ||||
| 03 | Switch | 3 | 61311368430 | $7.86 | Shop at ECS Tuning | |||||
| For vehicles with Electr. window lifter |
=Yes |
|||||||||
| 03 | Switch | 2 | 61311370805 | $8.98 | Shop at ECS Tuning | |||||
| 04 | Switch door front | 1 | 61311375551 | $7.09 | ENDED | Shop at ECS Tuning | ||||
| 05 | Switch | 2 | 61311362792 | $3.67 | Shop at ECS Tuning | |||||
| 07 | Csk.lenshead screw | ST3,9X9,5 | 5 | 07119902216 | $0.14 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 518i Various switches?
- This technical diagram illustrates the Various switches within the Vehicle electrical system group for the 5 Series E28 518i produced during 1986. It provides a detailed exploded view of the components, identifying key parts such as the Switch hand brake control (Part #61311369771).
- Which models use the hardware listed in this Various switches?
- The hardware and components featured in the Various switches are specific to the 5 Series E28 518i produced during 1986. These technical specifications ensure that parts like the Switch hand brake control (61311369771) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Various switches assembly?
- Each item in the Various switches corresponds to the numbered list below the illustration. For the 5 Series E28 518i, you can identify the Switch hand brake control by locating its position on the schematic, which then links to the official BMW part number 61311369771 for the Vehicle electrical system section.
