Switch cigar lighter for BMW 5 Series E12 528i (1979)

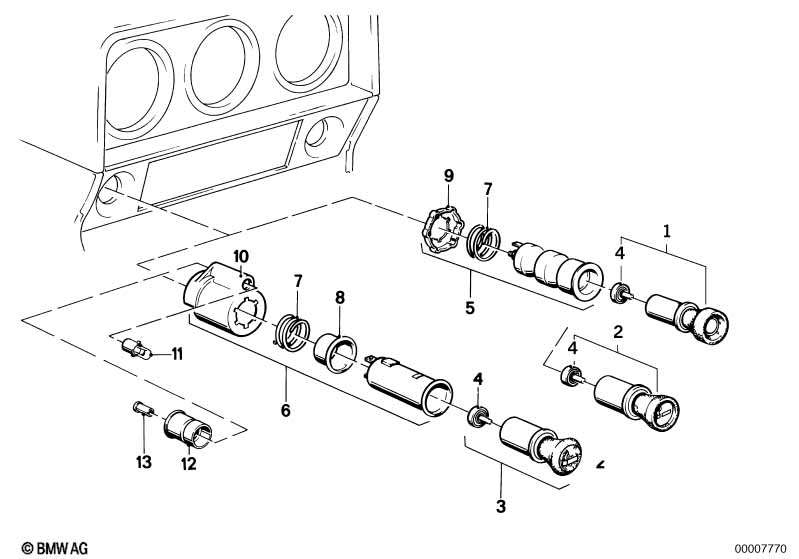

This Switch cigar lighter technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Lighter element | 1 | 09/1977 | 61341364532 | $18.67 | Shop at ECS Tuning | ||||
| 04 | Glow filament | 12 VOLT | 1 | 61348648111 | $5.27 | Shop at ECS Tuning | ||||
| 06 | Cigarette lighter socket | 1 | 09/1977 | 61341364058 | $16.29 | ENDED | Shop at ECS Tuning | |||
| 07 | Compression spring | 1 | 61341357281 | ENDED | Shop at ECS Tuning | |||||
| 08 | Illuminated ring | 1 | 61341364027 | $1.29 | ENDED | Shop at ECS Tuning | ||||
| 10 | Support cigar lighter | 1 | 61341363854 | $6.88 | ENDED | Shop at ECS Tuning | ||||
| 11 | Bulb | 12V 1,2W | X | 63217167000 | $3.00 | Shop at ECS Tuning | ||||
| 12 | Bulb socket | 1 | 61131364064 | ENDED | Shop at ECS Tuning | |||||
| 13 | NIpple | 1 | 61131351034 | $0.39 | ENDED | Shop at ECS Tuning |
