Switch combination electr.wind.lift. for BMW 5 Series E12 525 (1976)

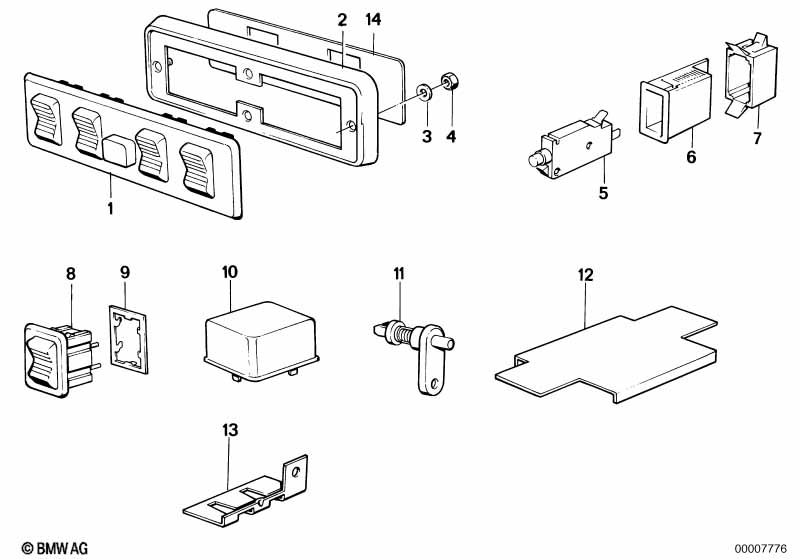

This Switch combination electr.wind.lift. technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Electr. window lifter |
=Yes |
|||||||||
| 01 | Switch combination electr.wind.lift. | 1 | 61311356531 | $96.68 | Shop at ECS Tuning | |||||
| 02 | Switch cover | 1 | 51411823490 | $20.24 | ENDED | Shop at ECS Tuning | ||||
| 03 | Washer | 4-200 HV-ZNS3 | 4 | 07119904207 | Shop at ECS Tuning | |||||
| 04 | Hex nut | M4-A2-70 | 4 | 07119922854 | Shop at ECS Tuning | |||||
| 05 | Circuit breaker | 2 | 61131358777 | $37.79 | ENDED | Shop at ECS Tuning | ||||
| 06 | Switch support | 2 | 61131356871 | $2.46 | Shop at ECS Tuning | |||||
| 07 | Holder | 2 | 61131356870 | $1.68 | Shop at ECS Tuning | |||||
| 08 | Rocker switch | 3 | 61311356006 | $47.30 | ENDED | Shop at ECS Tuning | ||||
| 09 | Switch cover | 4 | 51411822904 | $2.34 | ENDED | Shop at ECS Tuning | ||||
| 10 | Relay | GELB | 2 | 61311373585 | $23.75 | ENDED | Shop at ECS Tuning | |||
| 10 | Mini-relay | 2 | 61311373588 | $11.38 | Shop at ECS Tuning | |||||
| 11 | Switch | 1 | 61311370805 | $8.98 | Shop at ECS Tuning | |||||
| 12 | Holder | 1 | 08/1977 | 61311356050 | ENDED | Shop at ECS Tuning | ||||
| 14 | Cover | 1 | 51411852265 | $3.88 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 525 Switch combination electr.wind.lift.?
- This technical diagram illustrates the Switch combination electr.wind.lift. within the Vehicle electrical system group for the 5 Series E12 525 produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Switch combination electr.wind.lift. (Part #61311356531).
- Which models use the hardware listed in this Switch combination electr.wind.lift.?
- The hardware and components featured in the Switch combination electr.wind.lift. are specific to the 5 Series E12 525 produced during 1976. These technical specifications ensure that parts like the Switch combination electr.wind.lift. (61311356531) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Switch combination electr.wind.lift. assembly?
- Each item in the Switch combination electr.wind.lift. corresponds to the numbered list below the illustration. For the 5 Series E12 525, you can identify the Switch combination electr.wind.lift. by locating its position on the schematic, which then links to the official BMW part number 61311356531 for the Vehicle electrical system section.
