Various switches for BMW 7 Series E32 750iLS (1994)

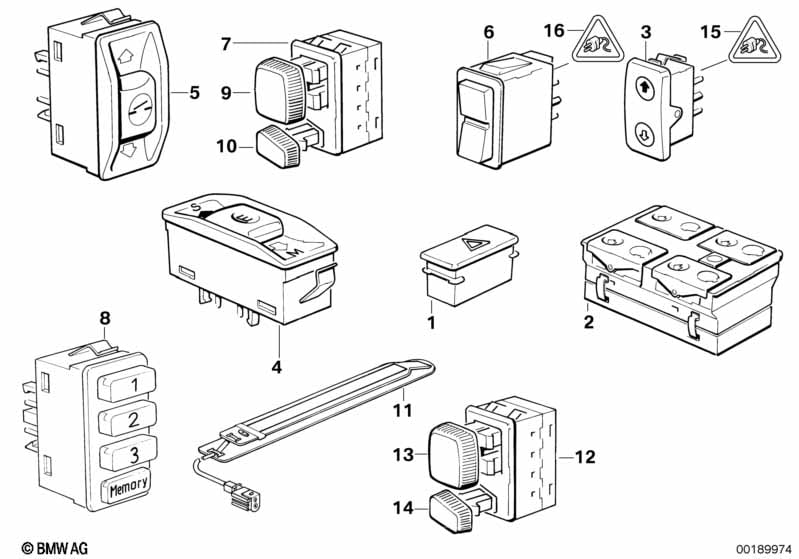

This Various switches technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iLS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hazard warning switch | 1 | 61311374220 | $32.07 | Shop at ECS Tuning | |||||
| 02 | Switch combination electr.wind.lift. | 1 | 61311379075 | $134.66 | Shop at ECS Tuning | |||||
| 03 | Switch window lifter | 2 | 61311379076 | $33.68 | Shop at ECS Tuning | |||||
| 03 | Switch electr.door window lifter front | LINKS | 1 | 61318350341 | ENDED | Shop at ECS Tuning | ||||
| 03 | Switch electr.door window lifter front | RECHTS | 1 | 61318350342 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO CURTAIN |
||||||||||
| 03 | Switch window lifter | 1 | 61311379076 | $33.68 | Shop at ECS Tuning | |||||
| 04 | Switch EH-gearbox | 1 | 61311378634 | $84.81 | ENDED | Shop at ECS Tuning | ||||
| 04 | Switch EH-gearbox AGS | 1 | 09/1992 | 61318359513 | $84.81 | Shop at ECS Tuning | ||||
| 05 | Switch sliding roof | 1 | 61311378862 | $66.71 | Shop at ECS Tuning | |||||
| 06 | Switch thigh support | 2 | 61311378380 | $60.61 | Shop at ECS Tuning | |||||
| 06 | Lumbar support switch | 2 | 61311378381 | $60.61 | ENDED | Shop at ECS Tuning | ||||
| 06 | Switch head rest rear | 2 | 61311379078 | $163.63 | Shop at ECS Tuning | |||||
| 06 | Seat heating switch | 4 | 09/1990 | 61311390888 | $169.71 | Shop at ECS Tuning | ||||
| For vehicles with Memory |
=Yes |
|||||||||
| 06 | Switch thigh support | 1 | 61311379099 | $163.63 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Roller sun shield |
=Yes |
|||||||||
| 06 | Switch sun blind | 1 | 61121390895 | $144.19 | Shop at ECS Tuning | |||||
| For vehicles with High Line and Seat heating, rear |
=Yes =Yes |
|||||||||
| 06 | Seat heating switch | 1 | 51638350148 | $169.71 | ENDED | Shop at ECS Tuning | ||||
| 07 | Switch seat adjusting front left | 1 | 09/1988 | 61311388110 | $154.88 | Shop at ECS Tuning | ||||
| 07 | Switch seat adjusting front right | 1 | 09/1988 | 61311388111 | $154.88 | Shop at ECS Tuning | ||||
| For vehicles with Memory |
=Yes |
|||||||||
| 07 | Switch seat adjusting front left | 1 | 09/1988 | 61311388112 | $154.88 | Shop at ECS Tuning | ||||
| For vehicles with High Line |
=Yes |
|||||||||
| 07 | Switch seat adjusting front right | 1 | 61311388725 | Shop at ECS Tuning | ||||||
| For vehicles with Memory |
=Yes |
|||||||||
| 08 | Switch | 1 | 61311374222 | $101.02 | ENDED | Shop at ECS Tuning | ||||
| 09 | Button f front seat adjustment | 2 | 61311379369 | $4.42 | Shop at ECS Tuning | |||||
| 10 | Front left backrest adjustment button | 1 | 61311379367 | $4.42 | Shop at ECS Tuning | |||||
| 10 | Front right backrest adjustment button | 1 | 61311379368 | $4.42 | Shop at ECS Tuning | |||||
| 11 | Switch cont.seat rear | 1 | 61311378635 | ENDED | Shop at ECS Tuning | |||||
| 12 | Switch seat adjusting rear left | 1 | 09/1988 | 61311388114 | $154.88 | ENDED | Shop at ECS Tuning | |||
| 12 | Switch seat adjusting rear right | 1 | 09/1988 | 61311388115 | $154.88 | Shop at ECS Tuning | ||||
| For vehicles with High Line |
=Yes |
|||||||||
| 12 | Switch seat-remote control | 1 | 61311388719 | ENDED | Shop at ECS Tuning | |||||
| 13 | Button seat adjusting rear | 1 | 61311379194 | $4.42 | Shop at ECS Tuning | |||||
| For vehicles with High Line |
=Yes |
|||||||||
| 13 | Button | 1 | 61311388723 | ENDED | Shop at ECS Tuning | |||||
| 14 | Button seat adjusting rear left | 1 | 61311379101 | $4.42 | Shop at ECS Tuning | |||||
| 14 | Button seat adjusting rear right | 1 | 61311379102 | $4.42 | Shop at ECS Tuning | |||||
| For vehicles with High Line |
=Yes |
|||||||||
| 14 | Button | 1 | 61311388721 | ENDED | Shop at ECS Tuning | |||||
| 15 | Plug housing | 6 POL.WEISS | 1 | 61131378126 | $1.35 | Shop at ECS Tuning | ||||
| 16 | Plug housing | INTERNE NUMMER | 1 | 61131378442 | $1.28 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
