Various switches for BMW 3 Series E36 325tds (1999)

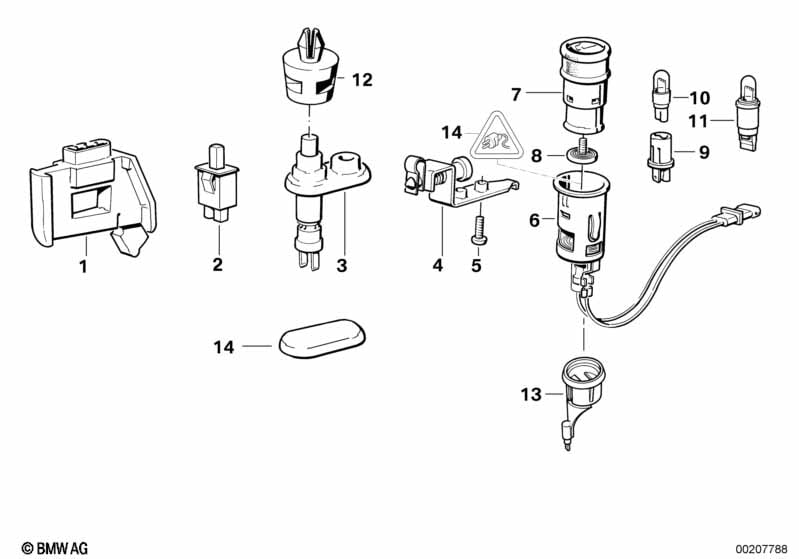

This Various switches technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Latch Striker | 4 | 51218105511 | $44.32 | SI 510691373 | Shop at ECS Tuning | ||||
| 02 | Switch | 1 | 61311388277 | ENDED | Shop at ECS Tuning | |||||
| ONLY APPLIES TO ENGINE COMPARTMENT LIGHT |
||||||||||
| 03 | Switch | 1 | 61311379572 | $14.12 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO TRUNK LIGHT |
||||||||||
| 03 | Switch | 1 | 61311362792 | $3.67 | Shop at ECS Tuning | |||||
| 03 | Switch | 1 | 61311379572 | $14.12 | Shop at ECS Tuning | |||||
| For vehicles with Alarm systems |
=Yes |
|||||||||
| 03 | Switch | 2 | 61311368430 | $7.86 | Shop at ECS Tuning | |||||
| 04 | Switch hand brake control | 1 | 61311369771 | $14.76 | Shop at ECS Tuning | |||||
| 05 | Fillister head screw | M4X8 | 1 | 07119906407 | $1.64 | Shop at ECS Tuning | ||||
| 06 | Cigarette lighter socket | 1 | 09/1996 | 61346973036 | $4.23 | Shop at ECS Tuning | ||||
| 07 | Lighter element | 1 | 09/1996 | 61349308246 | Shop at ECS Tuning | |||||
| 09 | Bulb socket | 1 | 64111366170 | $2.37 | Shop at ECS Tuning | |||||
| 10 | Bulb | 12V 1,2W | X | 63217167000 | $3.00 | Shop at ECS Tuning | ||||
| 11 | Bulb socket with bulb | 1,2W | 1 | 63311382547 | $2.40 | Shop at ECS Tuning | ||||
| 13 | Illuminated ring | WEIß | 1 | 09/1996 | 51162493684 | $0.92 | ENDED | Shop at ECS Tuning | ||
| 14 | Plug housing | 2 POL. | 1 | 61131351144 | $0.77 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Cable socket female | 0,5-1,0 MM² | X | 61131362868 | $0.68 | Shop at ECS Tuning | ||||
Notes
- SI = Service Information
- ENDED = the part has been discontinued (no longer available).
