Various micro switches for BMW 5 Series E34 525tds (1996)

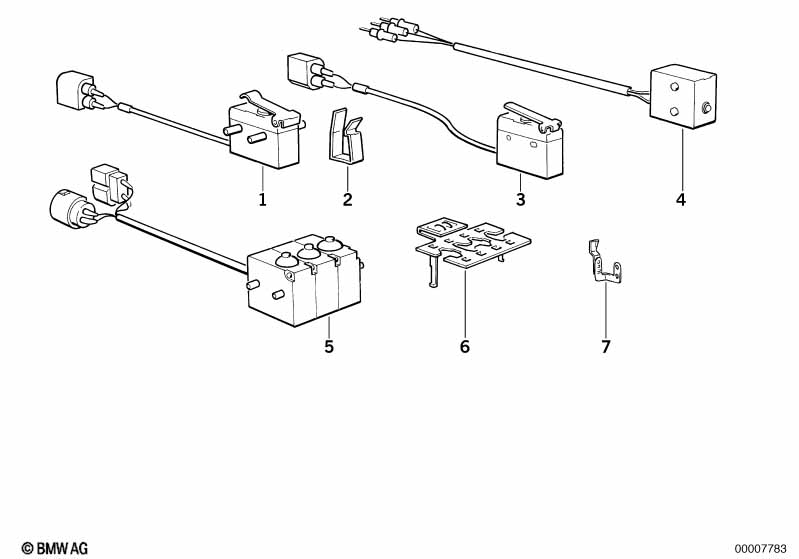

This Various micro switches technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Micro switch window lifter | 4 | 11/1991 | 61318356082 | $33.68 | Shop at ECS Tuning | ||||
| 02 | Microswitch clip | 4 | 61311382372 | $0.25 | Shop at ECS Tuning | |||||
| 03 | Micro switch door lock heating | 1 | 61311378374 | $38.47 | ENDED, +core | Shop at ECS Tuning | ||||
| ONLY APPLIES TO TRUNK LIGHT |
||||||||||
| 03 | Microswitch trunk lid lock | 1 | 61318355128 | $38.47 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Micro switch sliding lifting roof | 1 | 61311379931 | $38.47 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Central locking system |
=Yes |
|||||||||
| 05 | Micro switch left | 1 | 61311390885 | $38.47 | ENDED | Shop at ECS Tuning | ||||
| 05 | Micro switch right | 1 | 61311390886 | $38.47 | ENDED | Shop at ECS Tuning | ||||
| 05 | Micro switch right | 1 | 61311374458 | ENDED | Shop at ECS Tuning | |||||
| 05 | Micro switch right | 1 | 61311374458 | ENDED | Shop at ECS Tuning | |||||
| 06 | Plug-in connection bracket | 2 | 61131378440 | $2.03 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
