Switch for BMW 3 Series E30 320i (1992)

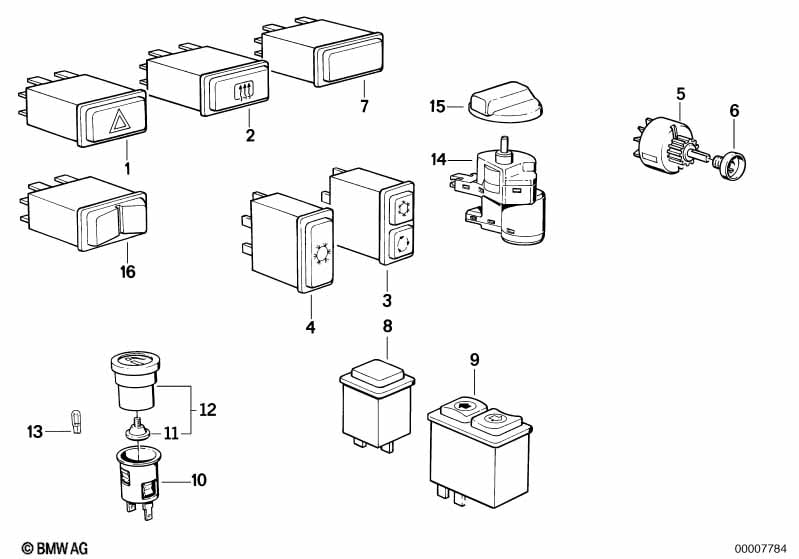

This Switch technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| The code pin must be removed for installation in vehicles built after 09/1986. |
||||||||||
| 01 | Hazard warning switch | 1 | 09/1986 | 61311367341 | Shop at ECS Tuning | |||||
| 02 | Switch heated rear window | 1 | 09/1986 | 61311380351 | $35.79 | Shop at ECS Tuning | ||||
| 03 | Switch air conditioning | 1 | 09/1986 | 61311380557 | $90.00 | Shop at ECS Tuning | ||||
| 05 | Switch blower | 1 | 09/1984 | 61311381201 | $28.18 | ENDED | Shop at ECS Tuning | |||
| 05 | Switch blower | 1 | 09/1984 | 61311376908 | $11.62 | ENDED | Shop at ECS Tuning | |||
| 06 | Trim ring | 1 | 64118362900 | $1.42 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Electr. window lifter |
=Yes |
|||||||||
| 07 | Circuit breaker | 1 | 09/1987 | 61311369375 | $159.26 | Shop at ECS Tuning | ||||
| 09 | Switch | 4 | 09/1986 | 61311381204 | $49.10 | Shop at ECS Tuning | ||||
| 09 | Switch illuminated | 4 | 09/1986 | 61311381205 | $45.75 | Shop at ECS Tuning | ||||
| 10 | Cigarette lighter socket | 1 | 61341367690 | $11.10 | Shop at ECS Tuning | |||||
| 11 | Glow filament | 12 VOLT | 1 | 61348648111 | $5.27 | Shop at ECS Tuning | ||||
| 12 | Lighter element | 1 | 61341367689 | $26.16 | ENDED, +core | Shop at ECS Tuning | ||||
| 13 | Bulb | 12V 1,2W | X | 63217167000 | $3.00 | Shop at ECS Tuning | ||||
| 16 | Switch folding top | 1 | 61312230532 | $85.50 | Shop at ECS Tuning | |||||
