Various switches for BMW 3 Series E30 325e (1987)

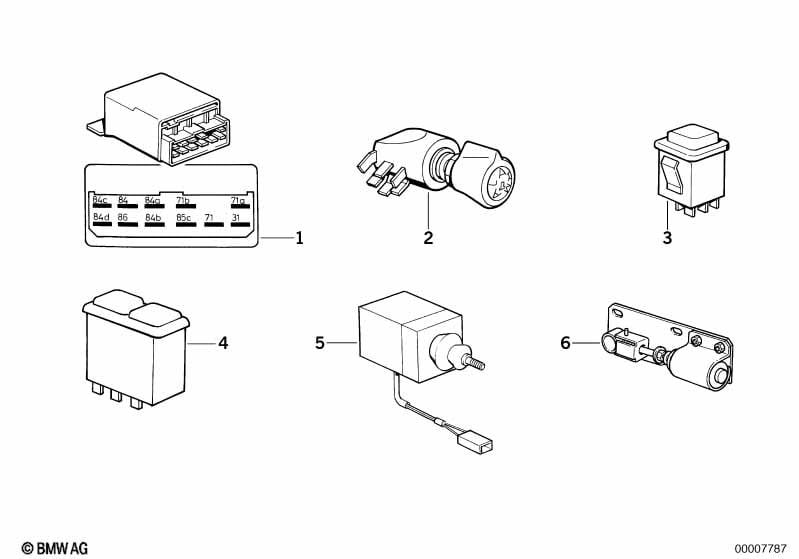

This Various switches technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 01 | Relay horn scale | 1 | 61311370102 | ENDED, +core | Shop at ECS Tuning | |||||
| 02 | Alarm switch | 1 | 02/1993 | 61311390386 | $88.51 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Bulb | 12V 1,2W | X | 02/1993 | 63217167000 | $3.00 | Shop at ECS Tuning | |||
| -- | Button | 1 | 02/1993 | 61311390388 | $5.58 | ENDED | Shop at ECS Tuning | |||
| -- | Cap | 1 | 02/1993 | 61311390389 | ENDED | Shop at ECS Tuning | ||||
| 03 | Switch | 4 | 09/1987 | 61311371725 | ENDED, +core | Shop at ECS Tuning | ||||
| ONLY APPLIES TO WEAPON SAFETY DEVICE | ||||||||||
| 05 | Solenoid switch | 4 | 61311364935 | ENDED, +core | Shop at ECS Tuning | |||||
| 05 | Weapon safety device | 4 | 72168181046 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325e Various switches?
- This technical diagram illustrates the Various switches within the Vehicle electrical system group for the 3 Series E30 325e produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Relay horn scale (Part #61311370102).
- Which models use the hardware listed in this Various switches?
- The hardware and components featured in the Various switches are specific to the 3 Series E30 325e produced during 1987. These technical specifications ensure that parts like the Relay horn scale (61311370102) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Various switches assembly?
- Each item in the Various switches corresponds to the numbered list below the illustration. For the 3 Series E30 325e, you can identify the Relay horn scale by locating its position on the schematic, which then links to the official BMW part number 61311370102 for the Vehicle electrical system section.
