Cab for BMW 5 Series E28 M535i (1987)

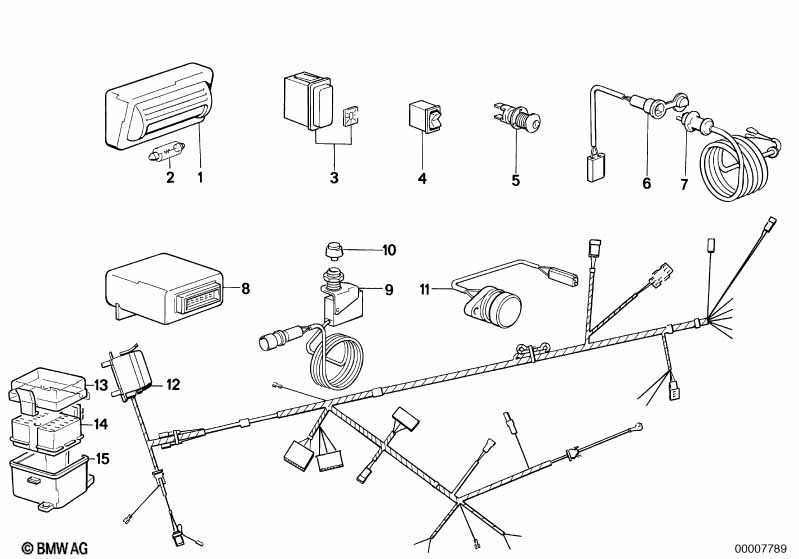

This Cab technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 M535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Taxi package |
S581A=Yes |
||||||||
| 01 | Interior light, rear | 1 | 63311376329 | ENDED | Shop at ECS Tuning | |||||
| 02 | Bulb | 12V 10W | X | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 03 | Interior light switch | 1 | 61311376697 | ENDED | Shop at ECS Tuning | |||||
| 04 | Switch taxi-lamp | 1 | 61311376753 | ENDED | Shop at ECS Tuning | |||||
| 05 | Tell-tale | 1 | 61131371338 | ENDED | Shop at ECS Tuning | |||||
| 06 | Plug-in socket | 1 | 61311373888 | ENDED | Shop at ECS Tuning | |||||
| 07 | Wiring taxi-lamp | 1 | 61121376324 | ENDED | Shop at ECS Tuning | |||||
| 08 | Control unit alarm | 1 | 65731376177 | ENDED | Shop at ECS Tuning | |||||
| 09 | Microswitch | 1 | 61311375880 | ENDED | Shop at ECS Tuning | |||||
| 10 | Button | 1 | 61311375882 | $14.62 | +core | Shop at ECS Tuning | ||||
| 11 | Alarm switch | 1 | 61311376401 | ENDED | Shop at ECS Tuning | |||||
| 12 | Wiring set | 1 | 61121376215 | ENDED | Shop at ECS Tuning | |||||
| 13 | Cover | 1 | 61131374650 | ENDED | Shop at ECS Tuning | |||||
| 14 | Fuse box | 1 | 61131376238 | ENDED | Shop at ECS Tuning | |||||
| 15 | Wiring box | 1 | 61131374652 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 M535i Cab?
- This technical diagram illustrates the Cab within the Vehicle electrical system group for the 5 Series E28 M535i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Interior light, rear (Part #63311376329).
- Which models use the hardware listed in this Cab?
- The hardware and components featured in the Cab are specific to the 5 Series E28 M535i produced during 1987. These technical specifications ensure that parts like the Interior light, rear (63311376329) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cab assembly?
- Each item in the Cab corresponds to the numbered list below the illustration. For the 5 Series E28 M535i, you can identify the Interior light, rear by locating its position on the schematic, which then links to the official BMW part number 63311376329 for the Vehicle electrical system section.
