Various switches for BMW 5 Series E34 518g (1996)

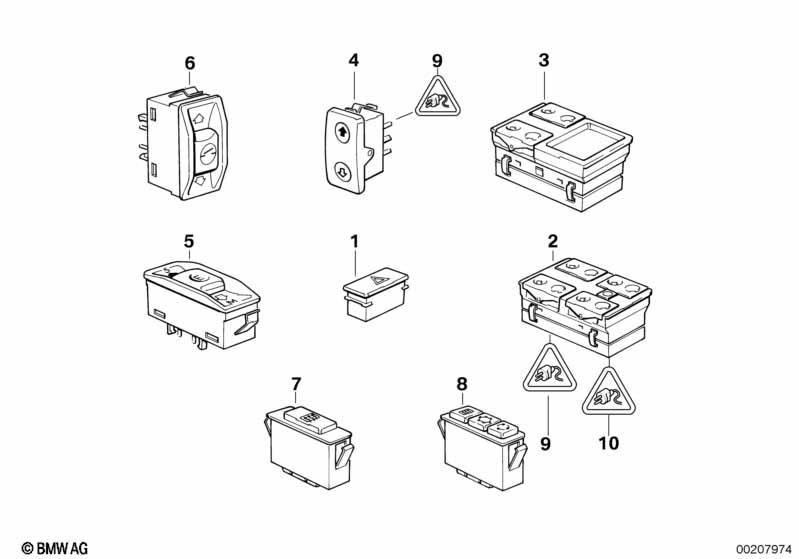

This Various switches technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 518g. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hazard warning switch | 1 | 61311374220 | $32.07 | Shop at ECS Tuning | |||||
| 02 | Switch combination electr.wind.lift. | 1 | 61311379075 | $134.66 | Shop at ECS Tuning | |||||
| 03 | Switch electr.door window lifter front | 1 | 61311374491 | $50.53 | Shop at ECS Tuning | |||||
| 04 | Switch window lifter | 2 | 61311379076 | $33.68 | Shop at ECS Tuning | |||||
| 06 | Switch sliding roof | 1 | 61318359270 | $66.71 | Shop at ECS Tuning | |||||
| 07 | Switch heated rear window | 1 | 61311391750 | $73.75 | Shop at ECS Tuning | |||||
| For vehicles with Microfilter |
=Yes |
|||||||||
| 07 | Switch heated rear window | 1 | 61311391853 | $346.63 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO AUC ONLY APPLIES TO AIR CONDITION |
||||||||||
| 08 | Switch f heated rear window/airflow | 1 | 61311391767 | $110.63 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 08 | Switch f heated rear window/airflow | 1 | 61311391764 | $110.63 | Shop at ECS Tuning | |||||
| 09 | Plug housing | 6 POL.WEISS | 1 | 61131378126 | $1.35 | Shop at ECS Tuning | ||||
| 10 | Socket housing | 6-POLIG SCHWARZ | 1 | 61131378127 | $1.35 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
