Various switches for BMW 8 Series E31 850Ci (1994)

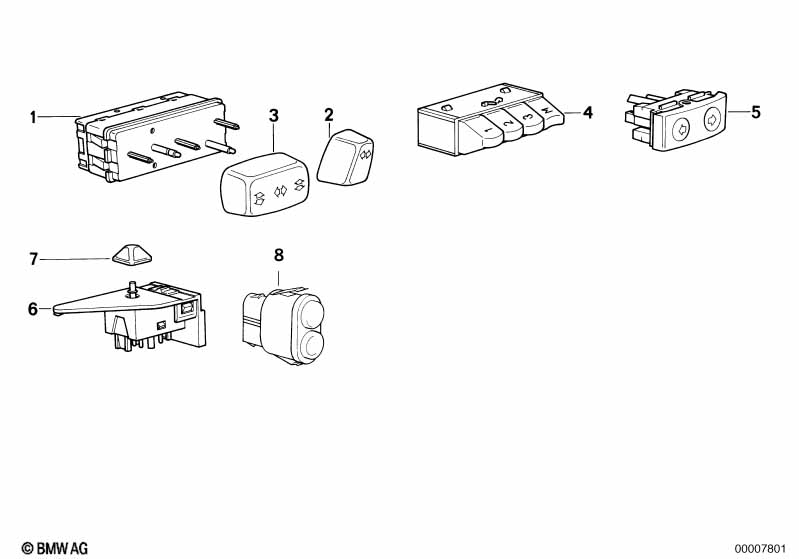

This Various switches technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Switch seat adjusting front right | 1 | 61311383476 | $154.88 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 01 | Switch seat adjusting front left | 1 | 61311392497 | $150.33 | Shop at ECS Tuning | |||||
| For vehicles with Lumbar support |
=Yes |
|||||||||
| 01 | Switch seat adjusting front right | 1 | 09/1995 | 61311388111 | $154.88 | Shop at ECS Tuning | ||||
| For vehicles with Lumbar support ONLY APPLIES TO CO-DRIVERS SIDE |
=Yes |
|||||||||
| 01 | Switch seat adjusting front left | 1 | 61311392498 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Memory |
=Yes |
|||||||||
| 01 | Switch seat adjusting front right | 1 | 61311383478 | $150.33 | Shop at ECS Tuning | |||||
| For vehicles with Memory and Lumbar support |
=Yes =Yes |
|||||||||
| 01 | Switch seat adjusting front right | 1 | 61311388113 | $588.47 | Shop at ECS Tuning | |||||
| 02 | Button f front left backrest | 2 | 61311383481 | $4.50 | Shop at ECS Tuning | |||||
| 02 | Button f front right backrest | 2 | 61311383482 | $4.50 | Shop at ECS Tuning | |||||
| For vehicles with Lumbar support |
=Yes |
|||||||||
| 02 | Button left | 2 | 61311383479 | $4.50 | Shop at ECS Tuning | |||||
| 02 | Button right | 2 | 61311383480 | $4.50 | Shop at ECS Tuning | |||||
| 03 | Button f front seat adjustment | 1 | 61311379369 | $4.42 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 03 | Button f front seat adjustment | 1 | 61311392490 | $5.87 | Shop at ECS Tuning | |||||
| 04 | Seat memory switch | 1 | 61311383193 | $98.06 | Shop at ECS Tuning | |||||
| 05 | Switch thigh support | 1 | 61311383353 | $58.83 | ENDED | Shop at ECS Tuning | ||||
| 05 | Lumbar support switch | 2 | 61311393363 | $109.08 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Memory |
=Yes |
|||||||||
| 05 | Switch thigh support | 1 | 61311383354 | $58.83 | Shop at ECS Tuning | |||||
| 06 | Mirror switch with change-over switch | 1 | 61311383468 | ENDED | Shop at ECS Tuning | |||||
| 06 | Mirror switch with change-over switch | 1 | 61311383467 | $65.36 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Cover | 1 | 61311383338 | Shop at ECS Tuning | ||||||
| Notice: Switch must be removed from the 'mirror switch with position selector' and then clipped into the 'cover.' |
||||||||||
| For vehicles with Memory |
=Yes |
|||||||||
| 06 | Mirror switch with change-over switch | 1 | 61311392458 | ENDED | Shop at ECS Tuning | |||||
| 07 | Button | 1 | 61311383335 | $3.62 | Shop at ECS Tuning | |||||
| 08 | Lumbar support switch | 1 | 61311393363 | $109.08 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
