Body control units and moduls for BMW 8 Series E31 850Ci (1994)

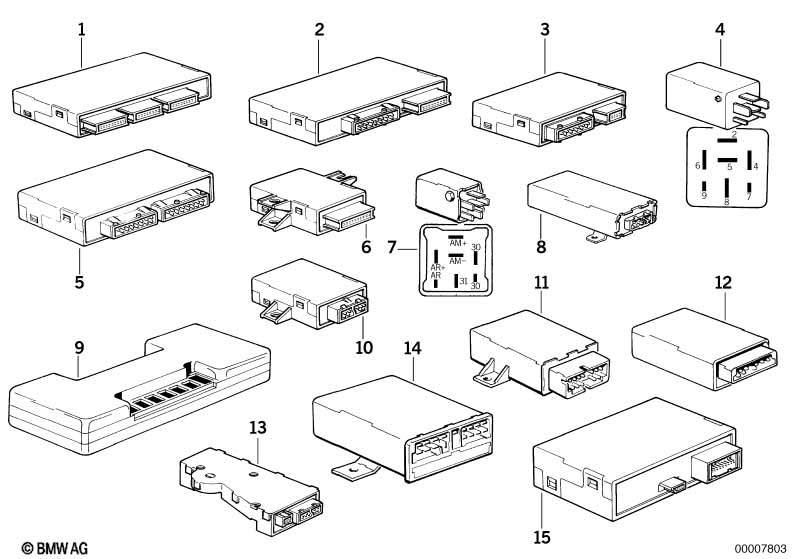

This Body control units and moduls technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Basic modul 2 without coding | 1 | 61356957038 | $442.65 | Shop at ECS Tuning | |||||
| 02 | Relay module 1 | 1 | 61351383411 | $335.34 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO SERVO CATCH | ||||||||||
| 03 | Relay module | 1 | 61351383416 | ENDED | Shop at ECS Tuning | |||||
| 04 | Relay module 2 | 1 | 61351383417 | $23.75 | ENDED | Shop at ECS Tuning | ||||
| for pressure adjusting device | ||||||||||
| 04 | Relay module 2 | 1 | 61351383417 | $23.75 | ENDED | Shop at ECS Tuning | ||||
| 05 | Bulb testing device without coding | 1 | 61351383412 | $335.34 | ENDED | Shop at ECS Tuning | ||||
| 06 | Door module, driver | 1 | 61356957040 | $281.68 | Shop at ECS Tuning | |||||
| 06 | Door module, co-driver | 1 | 61356957041 | $281.68 | Shop at ECS Tuning | |||||
| 08 | Control unit AUC | 1 | 61351390352 | $223.44 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Memory |
=Yes |
|||||||||
| 09 | Seat and mirror memory control unit | 1 | 03/1993 | 61358356510 | $314.22 | Shop at ECS Tuning | ||||
| 10 | Control unit lock-sensor | 1 | 61358360039 | $349.11 | ENDED | Shop at ECS Tuning | ||||
| 11 | Relay boxindep.ventil.sys/-heater sys. | 1 | 61311379737 | $244.38 | +core | Shop at ECS Tuning | ||||
| 12 | Control unit sun blind | 1 | 61351382995 | $125.69 | Shop at ECS Tuning | |||||
| 13 | Control unit sliding lifting roof | 1 | 61356957042 | $321.91 | ENDED | Shop at ECS Tuning | ||||
| 15 | Unit control for head light aim control | 1 | 61358354483 | $366.60 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
