Cable harness for BMW 8 Series E31 850Ci (1999)

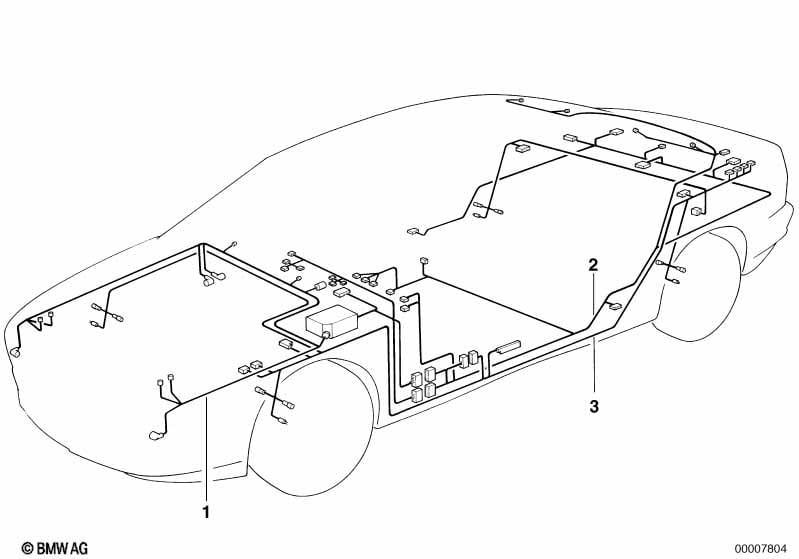

This Cable harness technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring harness, front section | 1 | 02/1997 | 61118377865 | $3014.92 | ENDED | Shop at ECS Tuning | |||
| 02 | Cable harness sector rear | 1 | 09/1995 | 61118369757 | $3014.92 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC) |
S508A=Yes |
|||||||||
| 02 | Cable harness sector rear | 1 | 09/1995 | 61112137658 | $2778.84 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Nordic countries version |
=Yes |
|||||||||
| 02 | Cable harness sector rear | 1 | 09/1995 | 61118369758 | ENDED | Shop at ECS Tuning | ||||
| 03 | Cable harness chassis | 1 | 09/1995 | 61118369765 | $1532.10 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 850Ci Cable harness?
- This technical diagram illustrates the Cable harness within the Vehicle electrical system group for the 8 Series E31 850Ci produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Wiring harness, front section (Part #61118377865).
- Which models use the hardware listed in this Cable harness?
- The hardware and components featured in the Cable harness are specific to the 8 Series E31 850Ci produced during 1999. These technical specifications ensure that parts like the Wiring harness, front section (61118377865) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cable harness assembly?
- Each item in the Cable harness corresponds to the numbered list below the illustration. For the 8 Series E31 850Ci, you can identify the Wiring harness, front section by locating its position on the schematic, which then links to the official BMW part number 61118377865 for the Vehicle electrical system section.
