Horn for BMW 5 Series E12 518 (1978)

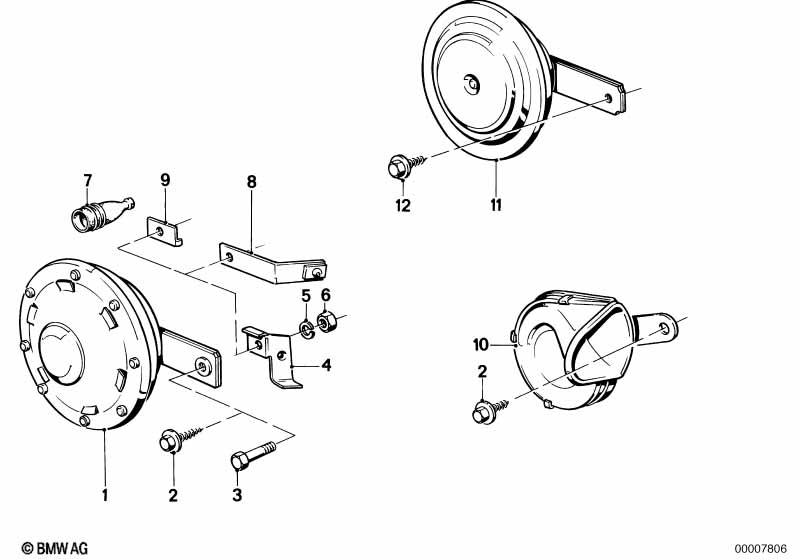

This Horn technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 518. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Hex head screw | ST6,3X19-C-Z2 | 2 | 07119916967 | $0.29 | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M8X18-8.8-ZNS3 | 4 | 07119904146 | $0.65 | Shop at ECS Tuning | ||||
| 05 | Wave washer | 8,4X15-ZNS3 | X | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Hex nut | M8-8-ZNS3 | X | 07/1981 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 06 | Hex nut | M8-8-ZNNIV SI | X | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 07 | Protection cap | 4 | 61131375697 | $1.72 | Shop at ECS Tuning | |||||
| 10 | Horn | KLAXON 420HZ | 1 | 08/1978 | 61331369823 | ENDED | Shop at ECS Tuning | |||
| 10 | Horn | KLAXON 420HZ | 1 | 08/1978 | 61331369823 | ENDED | Shop at ECS Tuning | |||
| 10 | Horn | KLAXON 520HZ | 1 | 08/1978 | 61331369824 | ENDED | Shop at ECS Tuning | |||
| 10 | Horn | KLAXON 520HZ | 1 | 08/1978 | 61331369824 | ENDED | Shop at ECS Tuning | |||
| 10 | Horn | FIAMM 410HZ | 1 | 08/1978 | 61331371914 | $30.82 | +core | Shop at ECS Tuning | ||
| 10 | Horn | FIAMM 410HZ | 1 | 08/1978 | 61331371914 | $30.82 | +core | Shop at ECS Tuning | ||
| 10 | Horn | FIAMM 410HZ | 1 | 08/1978 | 61337163972 | ENDED | Shop at ECS Tuning | |||
| 10 | Horn | FIAMM 410HZ | 1 | 08/1978 | 61337163972 | ENDED | Shop at ECS Tuning | |||
| 10 | Horn | HELLA 400HZ | 1 | 08/1978 | 61331372945 | $42.12 | ENDED | Shop at ECS Tuning | ||
| 10 | Horn | HELLA 400HZ | 1 | 08/1978 | 61331372945 | $42.12 | ENDED | Shop at ECS Tuning | ||
| 10 | Horn | HELLA 500HZ | 1 | 08/1978 | 61331376189 | $42.94 | Shop at ECS Tuning | |||
| 10 | Horn | HELLA 500HZ | 1 | 08/1978 | 61331376189 | $42.94 | Shop at ECS Tuning | |||
| 10 | Horn | FIAMM 510HZ | 1 | 08/1978 | 61337163975 | $48.37 | ENDED, +core | Shop at ECS Tuning | ||
| 10 | Horn | FIAMM 510HZ | 1 | 08/1978 | 61337163975 | $48.37 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 11 | Horn, high pitch | 500HZ | 2 | 61331358772 | $116.28 | ENDED, +core | Shop at ECS Tuning | |||
| 11 | Horn, low pitch | 375HZ | 2 | 61331358773 | $116.28 | ENDED, +core | Shop at ECS Tuning | |||
| 12 | Hex head screw | ST6,3X13-C-Z1 | 2 | 07119916960 | $0.24 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
