Switch for BMW 3 Series E30 318i (1989)

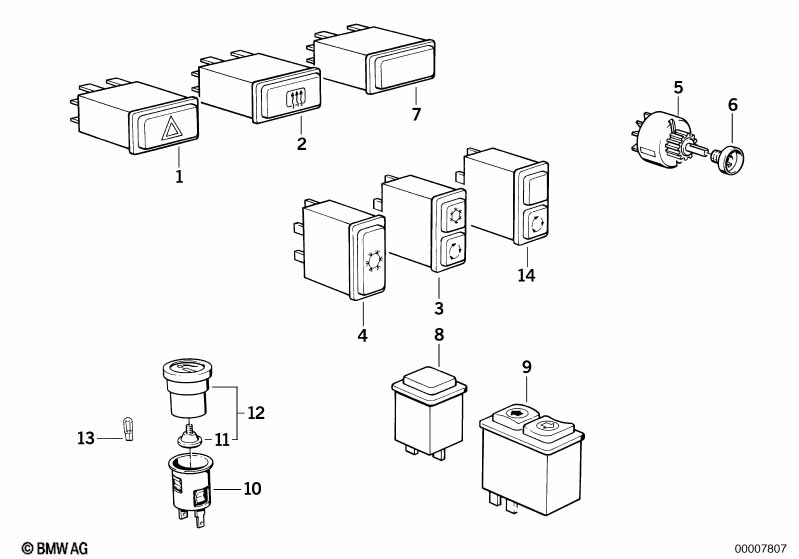

This Switch technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 05 | Switch blower | 1 | 01/1985 | 61311381201 | $28.18 | ENDED | Shop at ECS Tuning | |||
| 05 | Switch blower | 1 | 01/1985 | 61311376908 | $11.62 | ENDED | Shop at ECS Tuning | |||
| 06 | Trim ring | 1 | 64118362900 | $1.42 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Electr. window lifter |
=Yes |
|||||||||
| 07 | Circuit breaker | 1 | 01/1988 | 61311369375 | $159.26 | Shop at ECS Tuning | ||||
| 08 | Safety switch electr.window lifter | 1 | 61311385796 | $17.89 | Shop at ECS Tuning | |||||
| For vehicles with Electr. window lifter and Lift-up-and-slide-back sunroof |
=Yes =Yes |
|||||||||
| 09 | Switch illuminated | 2 | 01/1985 | 61311381205 | $45.75 | Shop at ECS Tuning | ||||
| 10 | Cigarette lighter socket | 1 | 61341367690 | $11.10 | Shop at ECS Tuning | |||||
| 11 | Glow filament | 12 VOLT | 1 | 61348648111 | $5.27 | Shop at ECS Tuning | ||||
| 12 | Lighter element | 1 | 61341367689 | $26.16 | ENDED, +core | Shop at ECS Tuning | ||||
| 13 | Bulb | 12V 1,2W | X | 63217167000 | $3.00 | Shop at ECS Tuning | ||||
| 14 | Air flow switch | 1 | 61311386811 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
