Horn for BMW 7 Series E23 735i (1982)

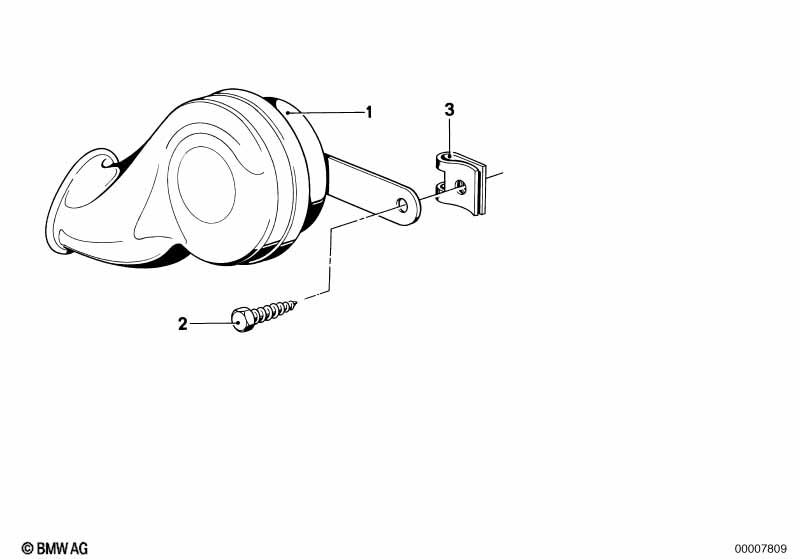

This Horn technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Horn | KLAXON 420HZ | 1 | 61331369823 | ENDED | Shop at ECS Tuning | ||||
| 01 | Horn | KLAXON 520HZ | 1 | 61331369824 | ENDED | Shop at ECS Tuning | ||||
| 01 | Horn | FIAMM 410HZ | 1 | 61331371914 | $30.82 | +core | Shop at ECS Tuning | |||
| 01 | Horn | FIAMM 410HZ | 1 | 61337163972 | ENDED | Shop at ECS Tuning | ||||
| 01 | Horn | HELLA 400HZ | 1 | 61331372945 | $42.12 | ENDED | Shop at ECS Tuning | |||
| 01 | Horn | HELLA 500HZ | 1 | 61331376189 | $42.94 | Shop at ECS Tuning | ||||
| 01 | Horn | FIAMM 510HZ | 1 | 61337163975 | $48.37 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Hexagon sheet-metal bolt | ST6,3X16-R-U2-Z | 2 | 07119905017 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Body nut | ST6,3-10 | 2 | 07129901672 | $0.35 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
