Horn for BMW 5 Series E34 525i (1990)

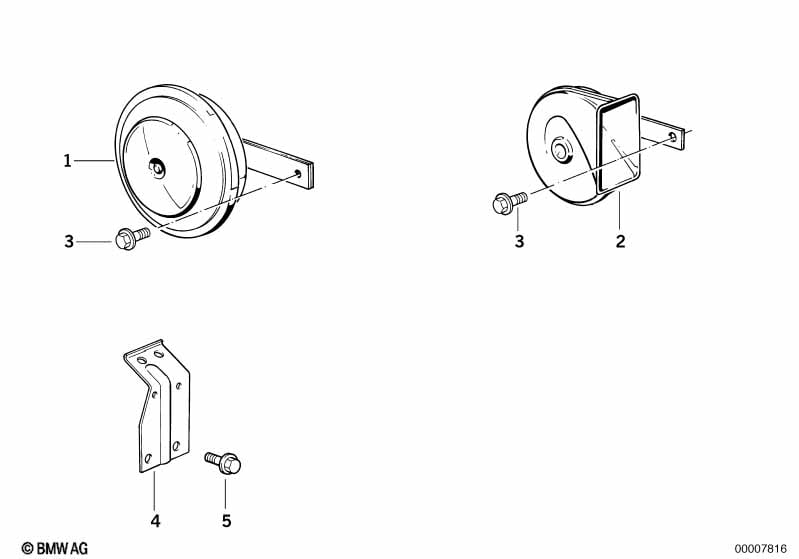

This Horn technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 01 | Horn, high pitch | 500HZ | 2 | 61331358772 | $116.28 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Horn, low pitch | 375HZ | 2 | 61331358773 | $116.28 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Taxi package |
S581A=Yes |
|||||||||
| 01 | Horn | 300HZ | 1 | 61331377815 | Shop at ECS Tuning | |||||
| 01 | Horn | 375HZ | 1 | 61331377816 | Shop at ECS Tuning | |||||
| 02 | Horn | HELLA 400HZ | 1 | 61331384744 | $61.15 | ENDED | Shop at ECS Tuning | |||
| 02 | Horn | HELLA 500HZ | 1 | 61331384745 | $61.15 | ENDED | Shop at ECS Tuning | |||
| 02 | Horn | KLAXON 520HZ | 1 | 61331389675 | ENDED | Shop at ECS Tuning | ||||
| 02 | Horn | KLAXON 420HZ | 1 | 61331389676 | ENDED | Shop at ECS Tuning | ||||
| 02 | Horn | FIAMM 410HZ | 1 | 61337163980 | $42.63 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Horn | FIAMM 510HZ | 1 | 61337163981 | $42.63 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Hex bolt with washer | M6X16-Z3-1 | 2 | 07119915018 | $0.71 | Shop at ECS Tuning | ||||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 04 | Super-tone horn bracket AT left bumper | 1 | 61131384993 | ENDED | Shop at ECS Tuning | |||||
| 04 | Super-tone horn bracket AT right bumper | 1 | 61131384994 | ENDED | Shop at ECS Tuning | |||||
| 05 | Hex bolt with washer | M10X25-Z3 | 4 | 07119913916 | $1.18 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 525i Horn?
- This technical diagram illustrates the Horn within the Vehicle electrical system group for the 5 Series E34 525i produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Horn, high pitch (Part #61331358772).
- Which models use the hardware listed in this Horn?
- The hardware and components featured in the Horn are specific to the 5 Series E34 525i produced during 1990. These technical specifications ensure that parts like the Horn, high pitch (61331358772) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Horn assembly?
- Each item in the Horn corresponds to the numbered list below the illustration. For the 5 Series E34 525i, you can identify the Horn, high pitch by locating its position on the schematic, which then links to the official BMW part number 61331358772 for the Vehicle electrical system section.
