Single wiper parts for BMW 7 Series E32 730i (1994)

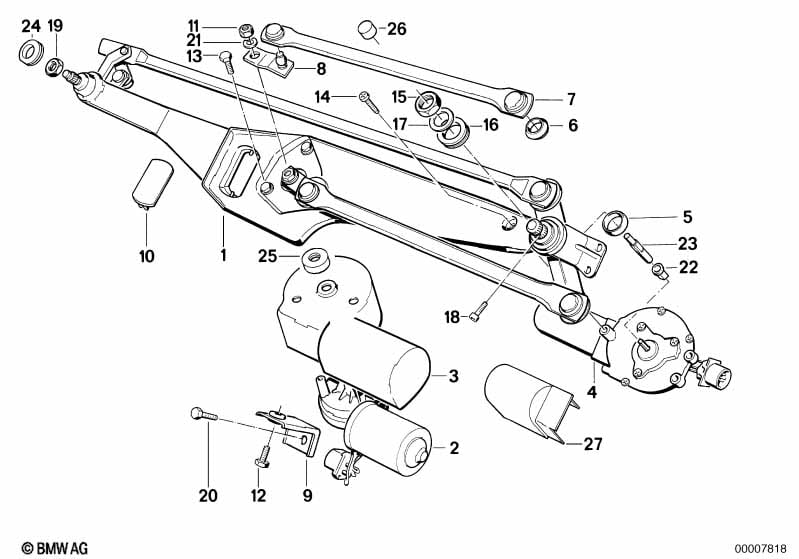

This Single wiper parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Linkage for wiper | 1 | 61611374434 | Shop at ECS Tuning | ||||||
| 02 | Wiper motor | 1 | 61611378650 | $313.31 | Shop at ECS Tuning | |||||
| 03 | Wiper motor cover | 1 | 61611384980 | $6.30 | Shop at ECS Tuning | |||||
| 04 | Pressure adjusting device | 1 | 67528360246 | $315.45 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Torx-bolt for plastic material | ISA TS5X16 | 3 | 07149113701 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Rubber boot | 1 | 61611378825 | $2.75 | Shop at ECS Tuning | |||||
| 06 | Rubber boot | 3 | 61611378537 | $5.23 | Shop at ECS Tuning | |||||
| 07 | Drive rod | 1 | 61611374410 | $11.05 | Shop at ECS Tuning | |||||
| 08 | Motor crank arm | 1 | 61611374404 | $18.50 | Shop at ECS Tuning | |||||
| 09 | Wiper rod assy holder | 1 | 61611374463 | $12.63 | ENDED | Shop at ECS Tuning | ||||
| 10 | Wiper linkage cover | 1 | 61611378704 | $0.95 | Shop at ECS Tuning | |||||
| 11 | Hex nut | M8-8-ZNS3 | 1 | 04/1994 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 12 | Hex bolt | M6X20-U2-8.8 | 1 | 07119903995 | $0.53 | Shop at ECS Tuning | ||||
| 13 | Hex bolt with washer | M6X18-Z3-2 | 3 | 07119915027 | $0.62 | Shop at ECS Tuning | ||||
| 15 | Hex nut | M22X1 | 2 | 61611374447 | $0.95 | Shop at ECS Tuning | ||||
| 16 | Damper ring | 2 | 61611374257 | $0.95 | Shop at ECS Tuning | |||||
| 17 | Washer | 2 | 61611374255 | $0.90 | Shop at ECS Tuning | |||||
| 18 | Fillister-head screw | M6X30 | 1 | 61611388264 | $2.80 | Shop at ECS Tuning | ||||
| 19 | Hex nut | M8-8-ZNS3 | 1 | 04/1994 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 20 | Hex bolt with washer | M6X12-SB-Z2 | 1 | 04/1994 | 07119913448 | $0.38 | ENDED | Shop at ECS Tuning | ||
| 21 | Wave washer | B8 | 1 | 04/1994 | 07119932095 | $0.09 | ENDED | Shop at ECS Tuning | ||
| 23 | Tappet for pressure adjust. device | 1 | 61611378828 | $26.62 | ENDED | Shop at ECS Tuning | ||||
| 24 | Damper ring | 1 | 61611384123 | $1.45 | Shop at ECS Tuning | |||||
| 25 | Wiper motor cover | 1 | 61611389528 | $6.40 | Shop at ECS Tuning | |||||
| 26 | Wiper axle cover | 1 | 61618356136 | $3.08 | ENDED | Shop at ECS Tuning | ||||
| 27 | Cover f pressure adjusting device | 1 | 61611384793 | $1.42 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
