Single wiper parts for BMW 3 Series E21 320i (1977)

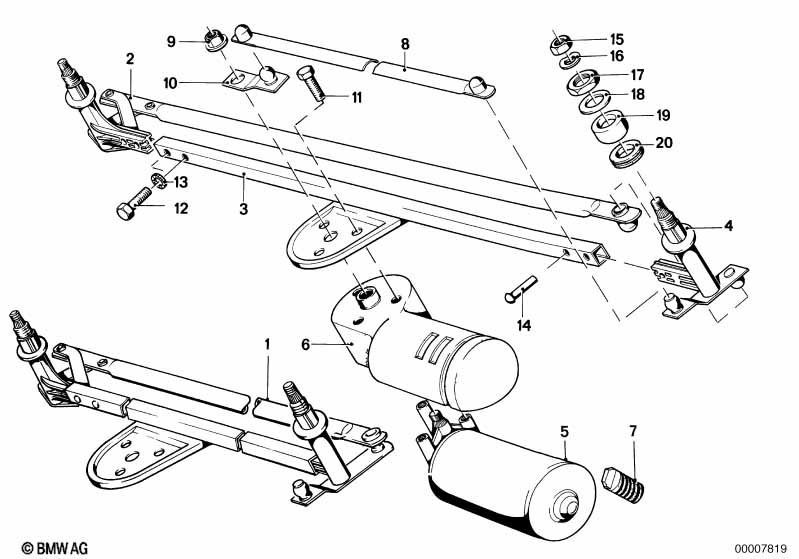

This Single wiper parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | SWF | |||||||||
| 01 | Linkage for wiper | 1 | 61611365294 | ENDED | Shop at ECS Tuning | |||||
| 02 | Linkage for wiper | 1 | 61611365294 | ENDED | Shop at ECS Tuning | |||||
| 03 | Console | 1 | 61611359897 | ENDED | Shop at ECS Tuning | |||||
| 04 | Linkage for wiper | 1 | 61611365294 | ENDED | Shop at ECS Tuning | |||||
| 05 | Wiper motor | SWF | 1 | 61611366527 | $284.25 | ENDED | Shop at ECS Tuning | |||
| 06 | Covering cap | 1 | 61611358200 | $3.39 | ENDED | Shop at ECS Tuning | ||||
| 07 | Stop buffer | 1 | 61611359866 | $5.47 | Shop at ECS Tuning | |||||
| 08 | Drive rod | 1 | 61611356475 | $40.79 | Shop at ECS Tuning | |||||
| 09 | Self-locking hex nut | M6 | 1 | 51417053138 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Motor crank arm | 1 | 61611356476 | $8.23 | ENDED | Shop at ECS Tuning | ||||
| 11 | Hex bolt with washer | M6X12-Z3-2 | 3 | 07119915014 | $3.47 | ENDED | Shop at ECS Tuning | |||
| 12 | Hex bolt | M6X25 | 2 | 07119913483 | $0.36 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M6X25 | 2 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
| 13 | Tooth washer | J6,4 | 2 | 07119936134 | $0.67 | Shop at ECS Tuning | ||||
| 14 | Rivet | 2 | 61611364881 | $0.17 | Shop at ECS Tuning | |||||
| 15 | Hex nut | M8-05-ZNNIV SI | 2 | 07119904948 | $1.00 | Shop at ECS Tuning | ||||
| 16 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 17 | Hex nut | 2 | 61618744121 | $7.09 | Shop at ECS Tuning | |||||
| 18 | Washer | 2 | 61618444182 | $4.98 | Shop at ECS Tuning | |||||
| 19 | Bush left | 1 | 61611356461 | $17.44 | ENDED | Shop at ECS Tuning | ||||
| 19 | Bush right | 1 | 61611356462 | $17.44 | Shop at ECS Tuning | |||||
| 20 | Damper ring | 2 | 61611356460 | $18.60 | ENDED | Shop at ECS Tuning | ||||
