Wiper arm/wiper blade for BMW 5 Series E28 528e (1987)

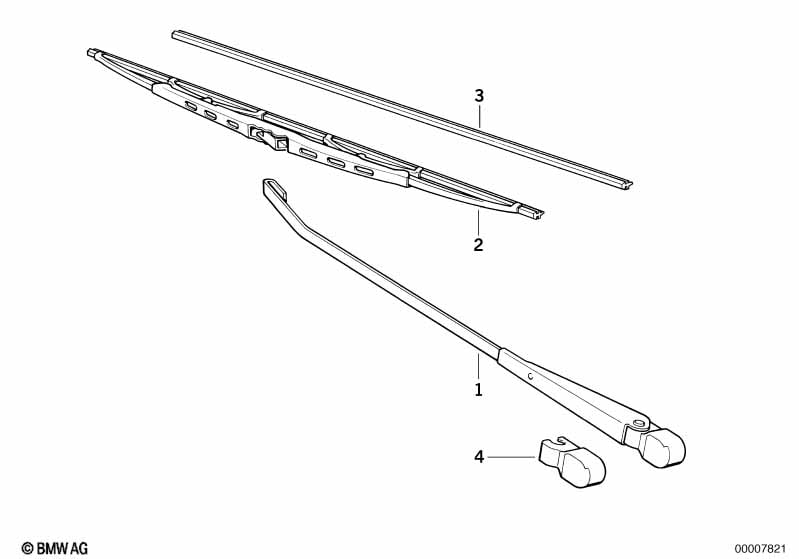

This Wiper arm/wiper blade technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiper arm left | 1 | 61611365979 | $34.39 | Shop at ECS Tuning | |||||
| 01 | Wiper arm right | 1 | 61611365980 | $34.36 | Shop at ECS Tuning | |||||

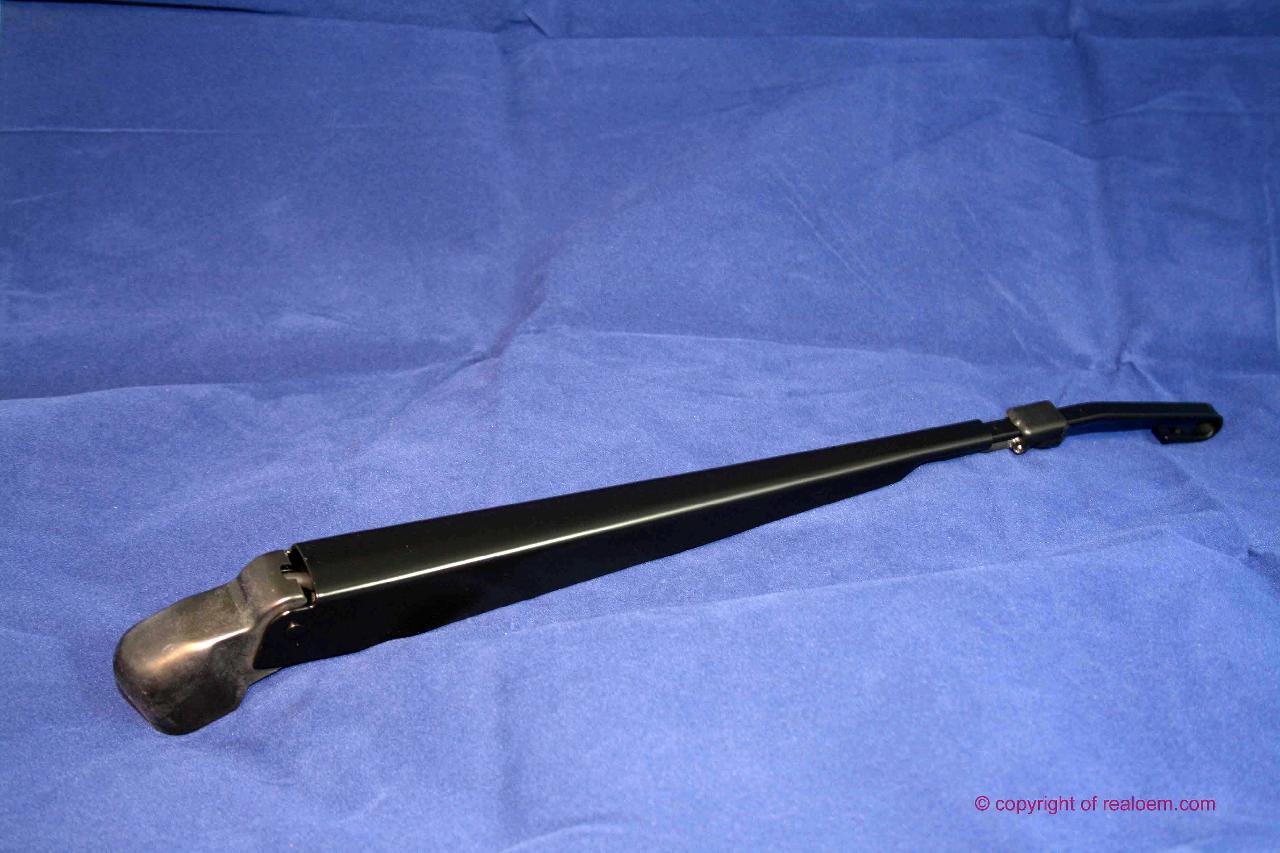

| 01 | Wiper arm right | 1 | 61611370024 | $28.64 | Shop at ECS Tuning | |||||
| 01 | Wiper arm right | 1 | 61611370028 | ENDED | Shop at ECS Tuning | |||||
| 02 | Set of wiper blades | 2 | 61619069195 | $37.38 | Shop at ECS Tuning | |||||
| 03 | Wiper rubber | 2 | 61611365351 | ENDED | Shop at ECS Tuning | |||||
| 03 | Wiper rubber | 2 | 61618217711 | $15.60 | Shop at ECS Tuning | |||||
| 04 | Covering cap | SWF | 2 | 61611372746 | $4.92 | ENDED | Shop at ECS Tuning | |||
| 04 | Covering cap | BOSCH | 2 | 61611376313 | $3.93 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
