Single parts for rear window wiper for BMW 3 Series E30 325i (1993)

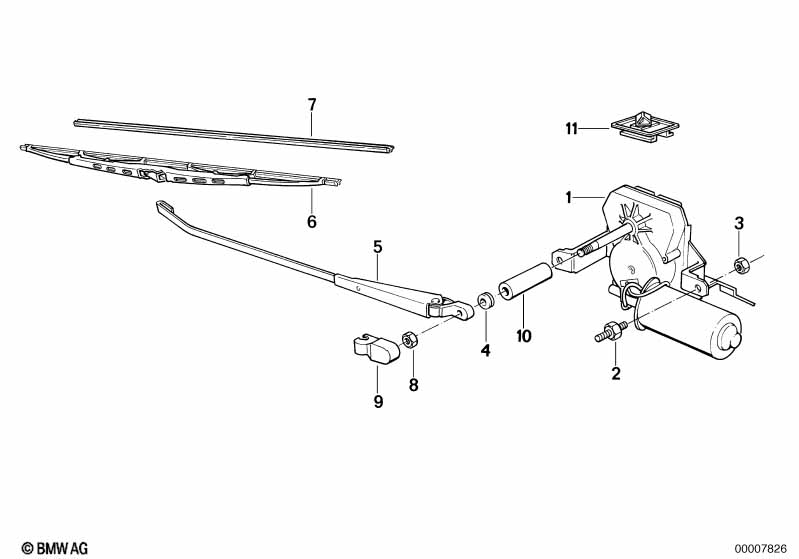

This Single parts for rear window wiper technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Rear window | |||||||||
| 01 | Wiper motor | 1 | 61621381523 | $385.02 | ENDED | Shop at ECS Tuning | ||||
| 02 | Rubber buffer | 3 | 64119175671 | $4.25 | Shop at ECS Tuning | |||||
| 03 | Self-locking hex nut | M6 | 3 | 51417053138 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Rubber grommet | 1 | 61621381605 | Shop at ECS Tuning | ||||||
| 05 | Wiper arm | 1 | 61621381525 | $62.63 | Shop at ECS Tuning | |||||
| 06 | Wiper blade | 1 | 61627140960 | Shop at ECS Tuning | ||||||
| 07 | Wiper rubber | 1 | 61621381754 | $9.52 | ENDED | Shop at ECS Tuning | ||||
| 08 | Hex nut | M8-8-ZNS3 | 1 | 02/1994 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 08 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 09 | Covering cap | 1 | 61621381845 | $19.64 | ENDED | Shop at ECS Tuning | ||||
| COMPRISES AMONG OTHERS SPRAY NOZZLE F REAR WINDOW CLEANING |
||||||||||
| 10 | Protection cap | 1 | 61621381606 | Shop at ECS Tuning | ||||||
| 11 | Bracket, plug connection black | 1 | 61131378944 | $0.87 | Shop at ECS Tuning | |||||
| 11 | Bracket, plug connection white | 1 | 61131378997 | $0.87 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
