Wiper for BMW 3 Series E30 320i (1992)

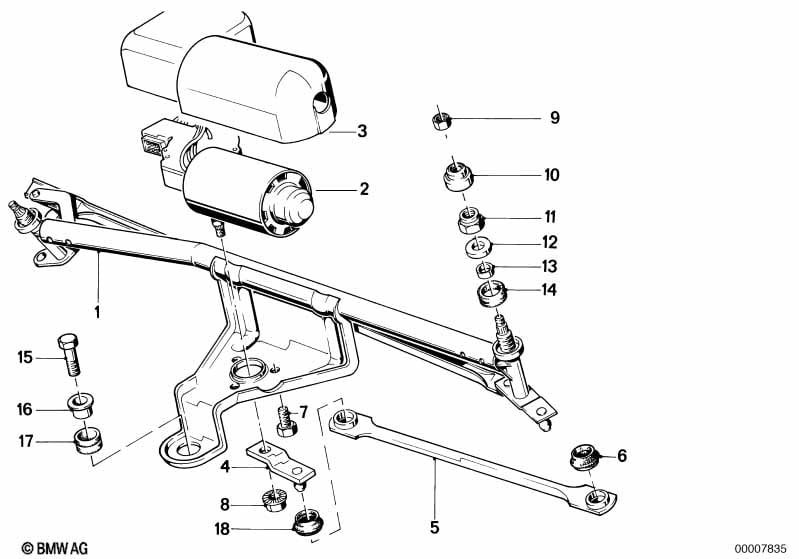

This Wiper technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Linkage for wiper | 1 | 61611370792 | $140.71 | Shop at ECS Tuning | |||||
| 02 | Wiper motor | BOSCH | 1 | 61611386155 | $329.81 | ENDED | Shop at ECS Tuning | |||
| 02 | Wiper motor | BOSCH | 1 | 61611373385 | $241.76 | Shop at ECS Tuning | ||||
| 03 | Covering cap | 1 | 61611369586 | $3.45 | Shop at ECS Tuning | |||||
| 04 | Motor crank arm | 1 | 61611370799 | $7.18 | Shop at ECS Tuning | |||||
| 05 | Drive rod | 1 | 61611370796 | $9.96 | Shop at ECS Tuning | |||||
| 06 | Rubber boot | D=16MM | 2 | 61611370800 | $5.55 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X12-Z3-2 | 3 | 07119915014 | $3.47 | ENDED | Shop at ECS Tuning | |||
| 08 | Self-locking hex nut | M6 | 1 | 51417053138 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Hex nut | M8-05-ZNNIV SI | 2 | 07119904948 | $1.00 | Shop at ECS Tuning | ||||
| 10 | Covering cap | 1 | 61611370387 | $2.16 | Shop at ECS Tuning | |||||
| 11 | Hex nut | 2 | 61618744121 | $7.09 | Shop at ECS Tuning | |||||

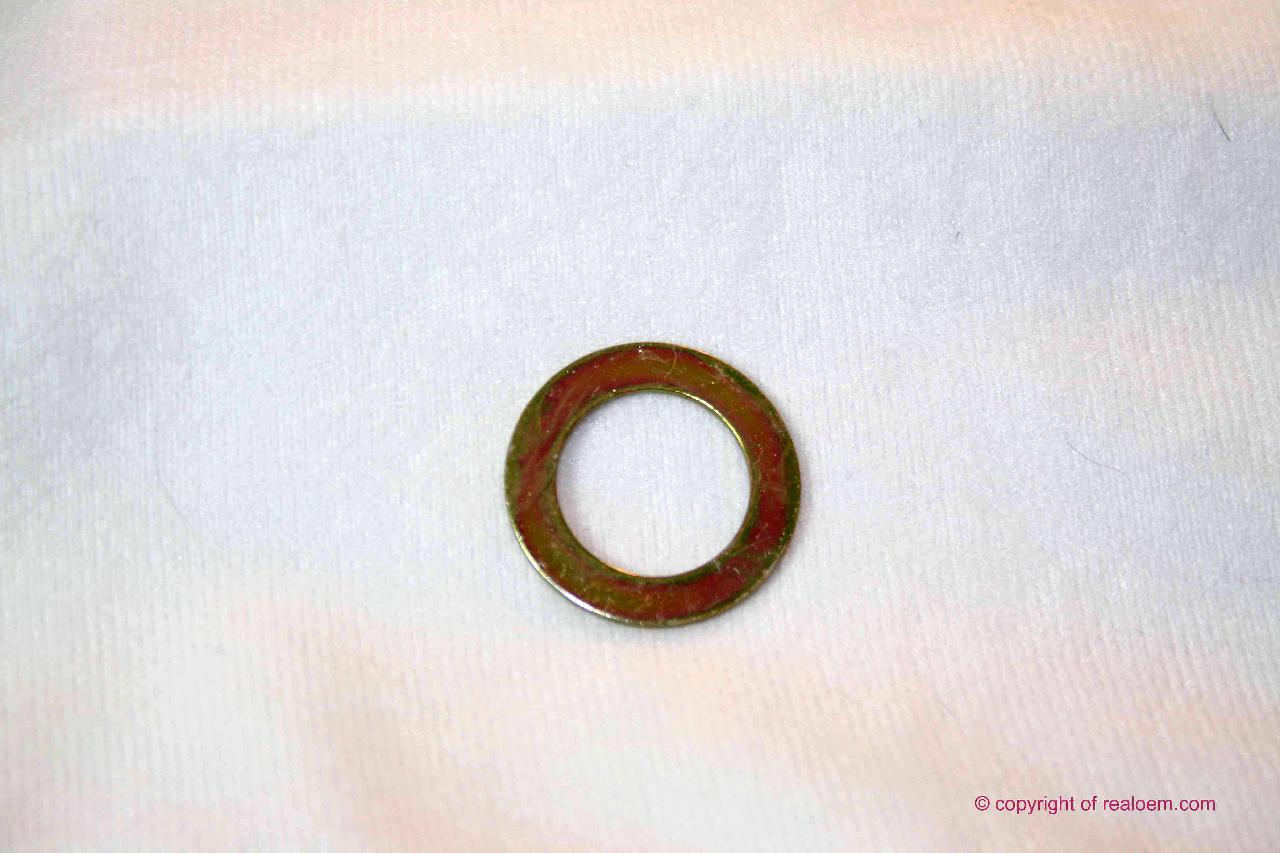

| 12 | Washer | 2 | 61618444182 | $4.98 | Shop at ECS Tuning | |||||
| 13 | Ring | 2 | 61611353766 | $0.45 | ENDED | Shop at ECS Tuning | ||||

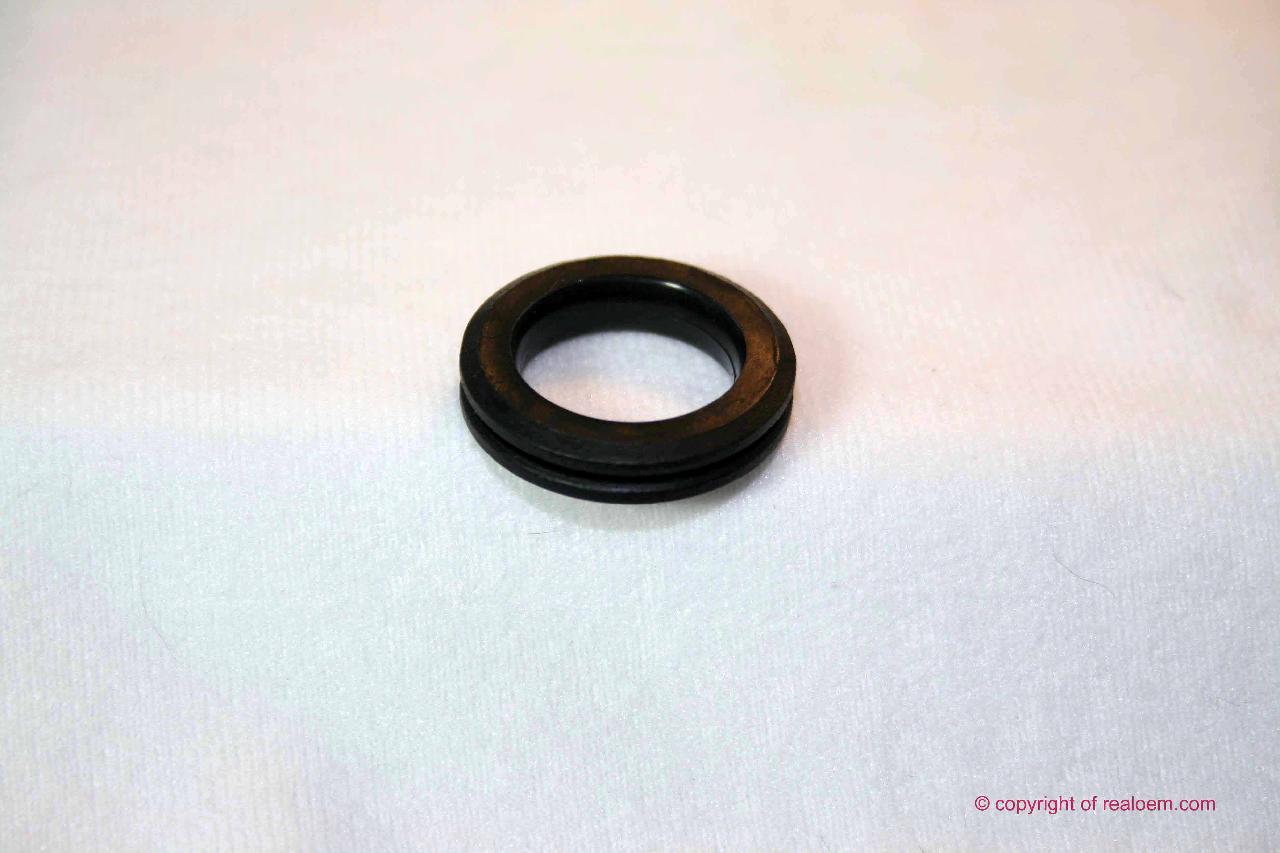

| 14 | Damper ring | 18X28X6 | 2 | 61611353754 | $1.18 | Shop at ECS Tuning | ||||
| 15 | Hex bolt | M6X20-U2-8.8 | 1 | 07119903995 | $0.53 | Shop at ECS Tuning | ||||
| 16 | Bushing | 1 | 61611372677 | $45.66 | ENDED | Shop at ECS Tuning | ||||
| 17 | Damper ring | 1 | 61611372676 | $5.48 | Shop at ECS Tuning | |||||
| 18 | Rubber boot f motor crank arm | D=16MM | 1 | 61611370649 | $6.02 | Shop at ECS Tuning |
