Single wiper parts for BMW 6 Series E24 M635CSi (1988)

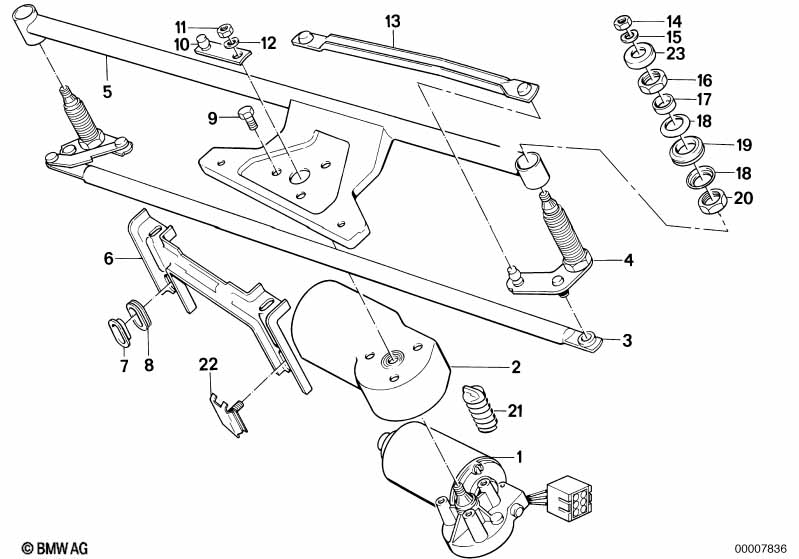

This Single wiper parts technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 M635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiper motor | 1 | 05/1982 | 61611386157 | $299.69 | Shop at ECS Tuning | ||||
| 02 | Covering cap | 1 | 05/1982 | 61601370814 | $4.16 | ENDED | Shop at ECS Tuning | |||
| 03 | Wipershaft pivot right | 1 | 61611359831 | $129.58 | ENDED | Shop at ECS Tuning | ||||
| 04 | Wipershaft pivot left | 1 | 61611359433 | $129.58 | Shop at ECS Tuning | |||||
| 05 | Console | 1 | 05/1982 | 61611371922 | $88.98 | Shop at ECS Tuning | ||||
| 06 | Spacer | 1 | 05/1982 | 61611371921 | $162.94 | Shop at ECS Tuning | ||||
| 07 | Bushing | 1 | 05/1982 | 61611371920 | $1.10 | ENDED | Shop at ECS Tuning | |||
| 08 | Damper ring | 1 | 05/1982 | 61611371919 | $2.88 | ENDED | Shop at ECS Tuning | |||
| 09 | Hex bolt with washer | M6X12-Z3-2 | 3 | 07119915014 | $3.47 | ENDED | Shop at ECS Tuning | |||
| 10 | Motor crank arm | 1 | 05/1982 | 61611371959 | $6.71 | ENDED | Shop at ECS Tuning | |||
| 11 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Spring washer Black | B6-ZN | 1 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Washer | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 12 | Wave washer | B6-ZNS3 | 1 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 13 | Drive rod | 1 | 61611373829 | $11.50 | Shop at ECS Tuning | |||||
| 14 | Hex nut | M8-8-ZNS3 | 2 | 04/1989 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 14 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 15 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 16 | Hex nut | 2 | 61618744121 | $7.09 | Shop at ECS Tuning | |||||
| 17 | Ring | 2 | 61611353766 | $0.45 | ENDED | Shop at ECS Tuning | ||||
| 18 | Washer | 4 | 61611353835 | $0.96 | Shop at ECS Tuning | |||||
| 19 | Damper ring | 18X28X6 | 2 | 61611353754 | $1.18 | Shop at ECS Tuning | ||||
| 20 | Hex nut | 2 | 61618744121 | $7.09 | Shop at ECS Tuning | |||||
| 21 | Stop buffer | 1 | 61611359866 | $5.47 | Shop at ECS Tuning | |||||
| 22 | Pin | 2 | 05/1982 | 61611372420 | ENDED | Shop at ECS Tuning | ||||
| 23 | Covering cap | 2 | 61611377269 | $0.59 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
